Wireguard: Wrong Automatically Generated Configuration

NethSecurity
1

Maybe related with DNS Resolution over WireGuard vs OpenVPN

On OpenWRT I use often the internal dnsmasq server as the DNS server for the Wireguard client.

Allowing to me to use local DNS records for the private network (LAN) on the remote machine.

The Wireguard clients access the DNS server at the IP of the firewalls Wireguard network interface.

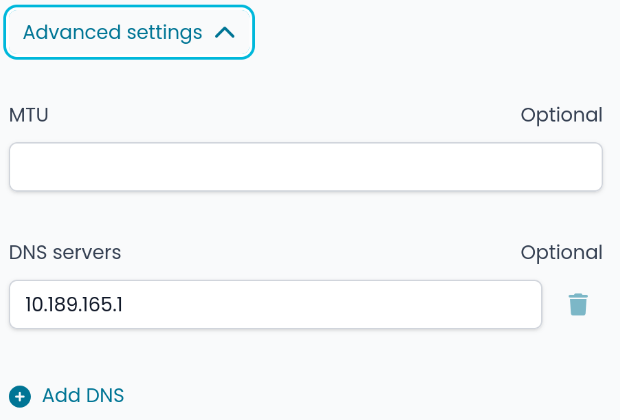

In this example if you add a Wireguard server tunnel with the filled in DNS server:

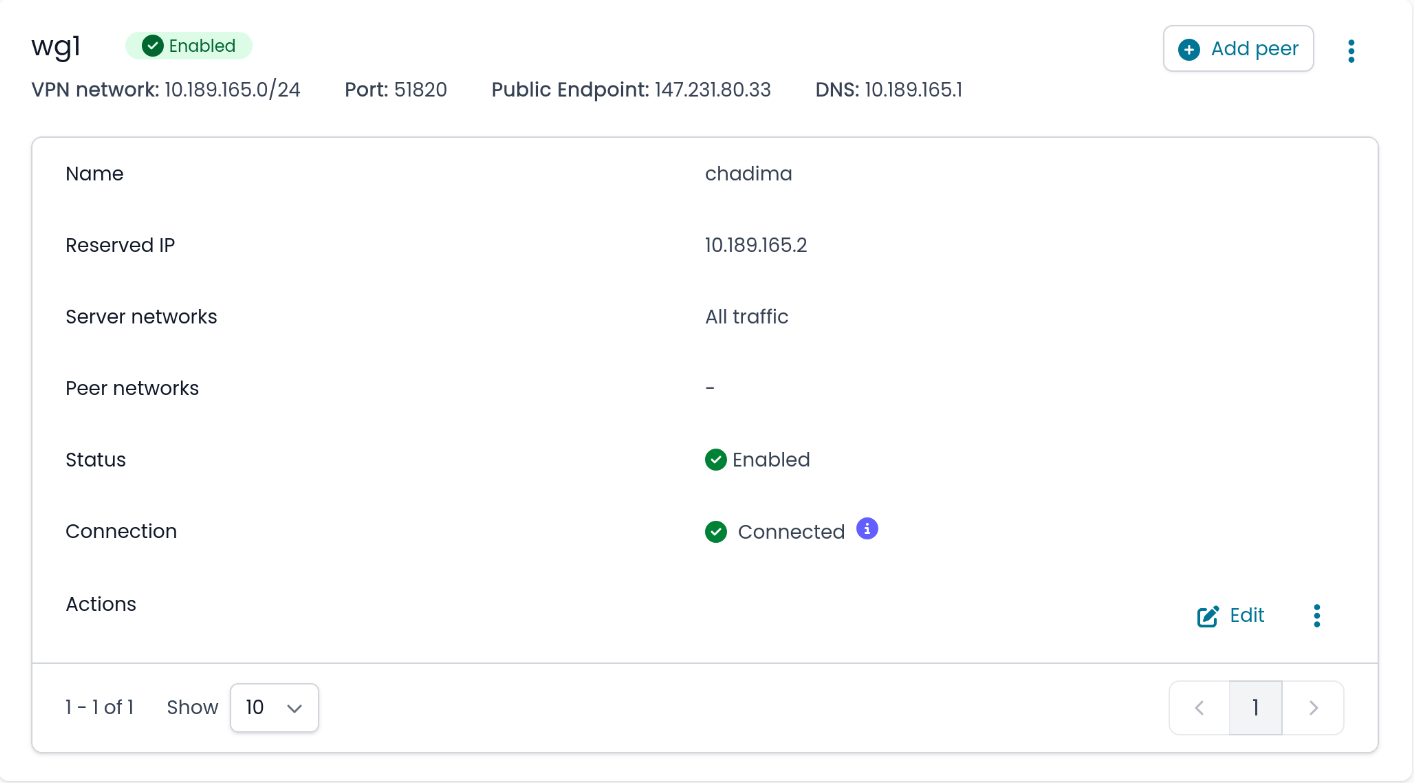

image620×420 19.6 KB

image1414×783 63.2 KB

The Nethsecurity creates a Wireguard private network:

config interface 'wg1'
        option proto 'wireguard'
        option private_key 'xxx'
        option listen_port '51820'
        option ns_network '10.189.165.0/24'
        option ns_public_endpoint '147.231.80.33'
        option ns_name 'wg1'
        option disabled '0'
        option ns_type 'server'
        list addresses '10.189.165.1'
        list ns_dns '10.189.165.1'

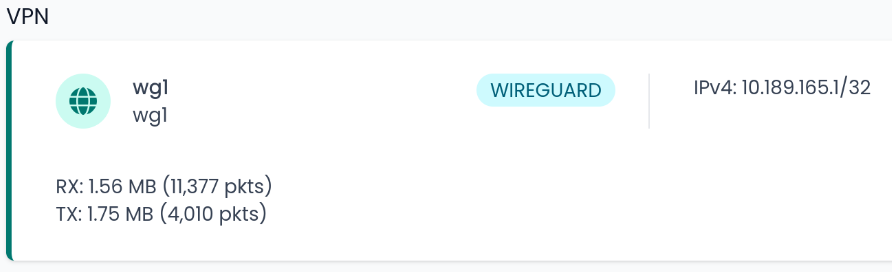

image892×272 22.5 KB

And the dnsmasq server is listening on the Wireguard IP address (netstat port 53 selected):

tcp        0      0 147.231.80.33:53        0.0.0.0:*               LISTEN      7336/dnsmasq
tcp        0      0 127.0.0.1:53            0.0.0.0:*               LISTEN      7336/dnsmasq
tcp        0      0 172.19.0.1:53           0.0.0.0:*               LISTEN      7336/dnsmasq
tcp        0      0 10.189.165.1:53         0.0.0.0:*               LISTEN      7336/dnsmasq
tcp        0      0 ::1:53                  :::*                    LISTEN      7336/dnsmasq
tcp        0      0 fe80::98cf:75ff:fe5c:b90d:53 :::*                    LISTEN      7336/dnsmasq
tcp        0      0 fe80::b081:4fff:fef4:28f9:53 :::*                    LISTEN      7336/dnsmasq
udp        0      0 127.0.0.1:53            0.0.0.0:*                           7336/dnsmasq
udp        0      0 147.231.80.33:53        0.0.0.0:*                           7336/dnsmasq
udp        0      0 172.19.0.1:53           0.0.0.0:*                           7336/dnsmasq
udp        0      0 10.189.165.1:53         0.0.0.0:*                           7336/dnsmasq
udp        0      0 ::1:53                  :::*                                7336/dnsmasq
udp        0      0 fe80::98cf:75ff:fe5c:b90d:53 :::*                                7336/dnsmasq
udp        0      0 fe80::b081:4fff:fef4:28f9:53 :::*                                7336/dnsmasq

But the DNS responses don’t reach the Wireguard client. Using the LAN IP of the DNS server should not work and is not the correct solution. Only DNS servers on the WAN network are working or no DNS filled at all (uses clients standard DNS servers).

Solution is in next Reply :slight_smile: (Maybe I should post this issues on Github?)

2

The problem is in the automatically generated server’s IP address of the Wireguard network, OpenWRT expects an address in CIDR format (otherwise it is resolved as /32? or I’m wrong?)

Change it to list addresses ‘w.x.y.z/24‘ adding /24 where w.x.y.z is the original address

2 Likes
3

Hello antonin!

Could you share the export of a .conf of a peer with the keys removed?

The addresses section should be fine, since it gets automatically converted to a /32 as you pointed out, but the impossibility of the connection could be a misconfig generated by the client config

4

following the guides and documentation of Wireguard on OpenWRT, list addresses
should be a CIDR notification of the IP and whole network → this a clear NethSecurity bug…
The server doesn’t know how to route/send packets to the client (the client IP is not in the same network…)

[Interface]
# Name = chadima
PrivateKey = xxx
Address = 10.189.165.2
DNS = 10.189.165.1

[Peer]
# Name = wg1
PublicKey = xxx
PresharedKey = xxx
AllowedIPs = 0.0.0.0/0, ::/0
Endpoint = 147.231.80.33:51820
PersistentKeepalive = 25
5

Nice catch, filed bug report now: WireGuard: DNS responses not reaching clients due to incorrect address format · Issue #1415 · NethServer/nethsecurity · GitHub
