Very poor Speed test

Support
1

NethServer Version: 7.x
Module: your_module

Hi… Long time no see :slight_smile:
I’ve got some trouble with NS7.x Speed test. It’s very slow
My Internet package is 1000/500 Mbps. I’d tested via notebook behind Router is nearly seems to be.

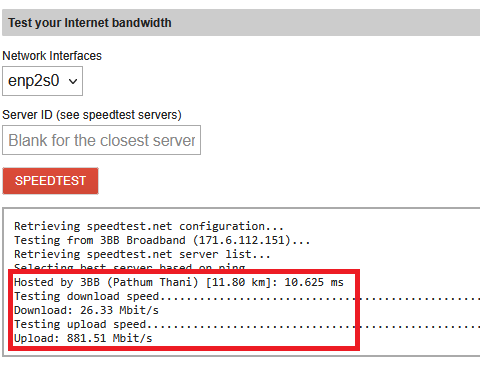

But With NS7 Diagnostic speed very low see my picture

ns speedtest
ns speedtest480×384 8.09 KB

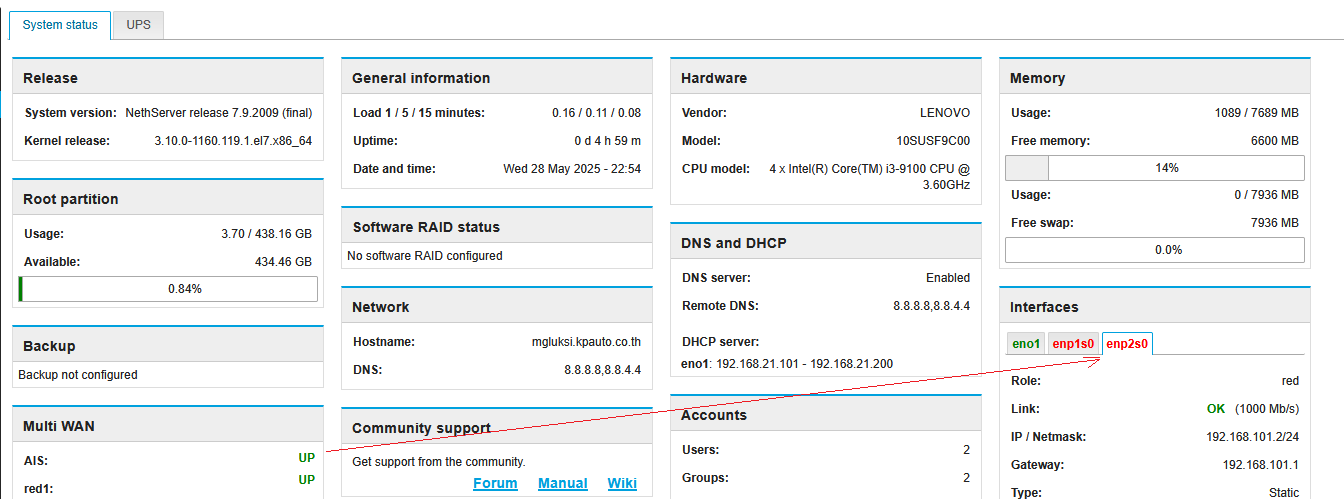

My Hardware is

ns dashboard
ns dashboard1344×499 29.1 KB

Serve around 50 Client

Could someone guide me what should be the problem?

Thanks in advance.
Cheers

2

Hi @i_combo

I’m sorry to hear about the slow speed test results on your NethServer. To help diagnose this, I need to better understand your network setup:

Please confirm these details:

  1. Network topology:
  • Is your WAN connection (ISP → modem) connected directly to NethServer (e.g., enp2s0 = WAN, another interface = LAN)?
  • Or does it go through an external router first (e.g., ISP → Router → NethServer)?
  1. Interface speeds:
  • Run these commands on your NethServer:

ethtool enp2s0 | grep -E “Speed|Duplex” # Check WAN interface speed/duplex ip link show # Show status of ALL interfaces

  • Does enp2s0 show 1000Mb/s (1 Gbps) and full duplex?
    • If using multiple interfaces (bonding/LAG), share your config.
  1. NethServer roles:
  • Is it acting as your primary firewall/router (using Firewall, Traffic Shaping, etc.)?
  • Or is it just a backend server (e.g., mail/files) behind another router?

Potential quick checks:

  • Interface bottleneck: If enp2s0 negotiates at 100Mbps (not 1Gbps), this would limit speeds.
  • Duplex mismatch: Half-duplex settings cause collisions/performance drops.
  • Bandwidth saturation: Your 50 clients might be consuming bandwidth during tests.
  • QoS/Shaping: Check if traffic policies limit download bandwidth.

Install iftop if missing (real-time traffic monitor):

sudo dnf install -y iftop

Monitor WAN traffic during speedtest:

sudo iftop -i enp2s0

Watch for: Unusual spikes/processes saturating download bandwidth.

Testing Path

  1. Where did you run the speed test?
  • did you test from a client PC behind NethServer (e.g., laptop → NS → ISP)?
    → If yes, what speeds did you get via Speedtest.net / Fast.com on that client?

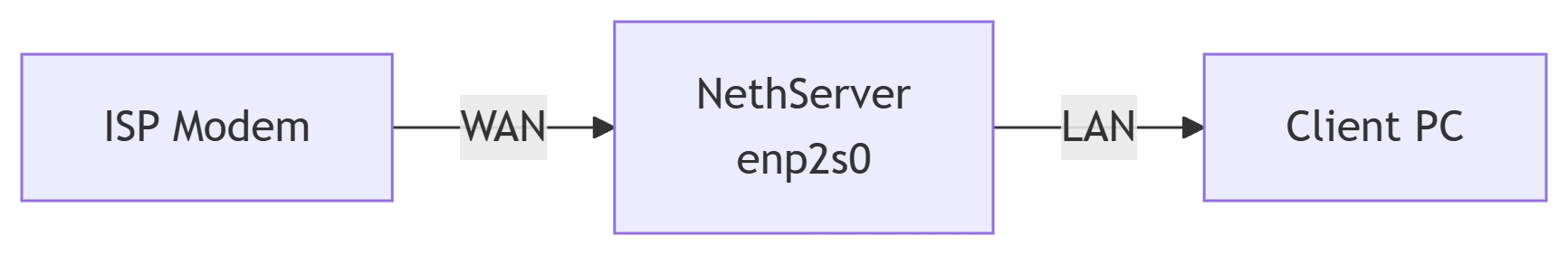

Physical Path Confirmation

Is your actual data flow:

diagrama red
diagrama red1732×282 20.3 KB

Please share these details, and we’ll dig deeper! Cheers.

2 Likes
3

Hello @jgjimenezs Thanks for your advice. That’s help me the way to ride on :slight_smile:

Before I confirm your details. Today I found weak point of e1000e (ENO1)

e1000e eno1 Reset adapter unexpectedly

Then I do clean install NS7.

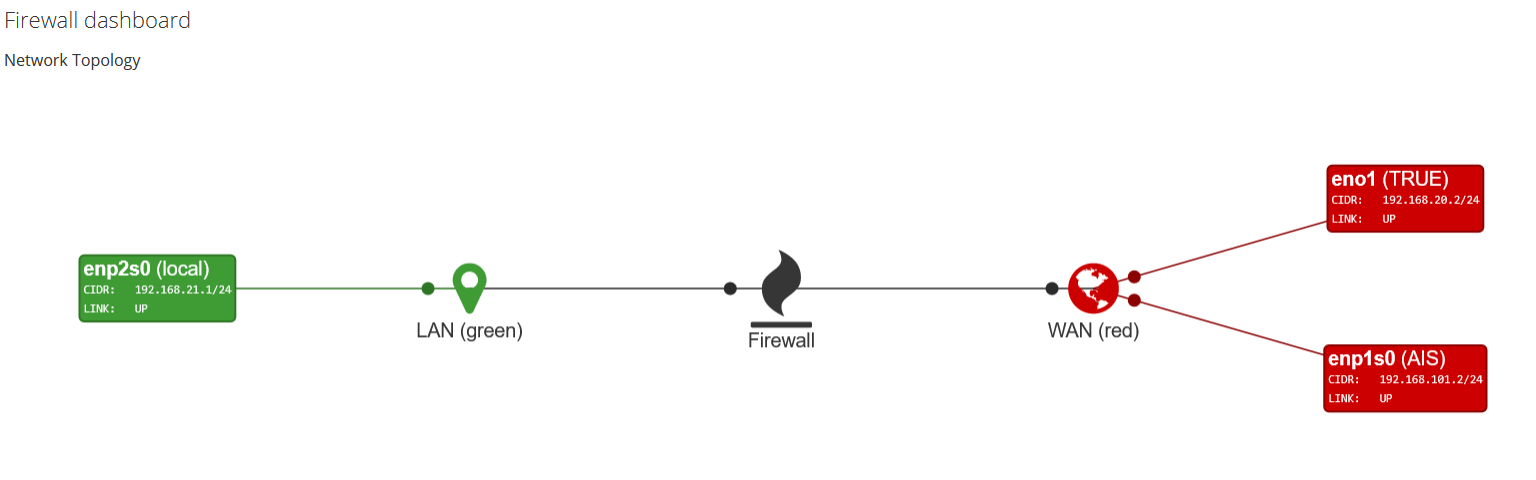

Network Topology as bellowing

ns network topology
ns network topology1536×480 35.8 KB

Mode: Active Back up “AIS” mainly operate (and the one I intend to do speedtest)

LAN
[root@fw ~]# ethtool enp2s0
Settings for enp2s0:
Supported ports: [ TP AUI BNC MII FIBRE ]
Supported link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Supported pause frame use: No
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Advertised pause frame use: No
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Link partner advertised link modes: 10baseT/Full
100baseT/Full
1000baseT/Full
Link partner advertised pause frame use: Symmetric Receive-only
Link partner advertised auto-negotiation: Yes
Link partner advertised FEC modes: Not reported
Speed: 1000Mb/s
Duplex: Full
Port: MII
PHYAD: 0
Transceiver: internal
Auto-negotiation: on
Supports Wake-on: pumbg
Wake-on: d
Current message level: 0x00000033 (51)
drv probe ifdown ifup
Link detected: yes

WAN: AIS
[root@fw ~]# ethtool enp1s0
Settings for enp1s0:
Supported ports: [ TP AUI BNC MII FIBRE ]
Supported link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Supported pause frame use: No
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Advertised pause frame use: No
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Link partner advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Half 1000baseT/Full
Link partner advertised pause frame use: Symmetric
Link partner advertised auto-negotiation: Yes
Link partner advertised FEC modes: Not reported
Speed: 1000Mb/s
Duplex: Full
Port: MII
PHYAD: 0
Transceiver: internal
Auto-negotiation: on
Supports Wake-on: pumbg
Wake-on: d
Current message level: 0x00000033 (51)
drv probe ifdown ifup
Link detected: yes

WAN: TRUE
[root@fw ~]# ethtool eno1
Settings for eno1:
Supported ports: [ TP ]
Supported link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Supported pause frame use: No
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Advertised pause frame use: No
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Speed: 1000Mb/s
Duplex: Full
Port: Twisted Pair
PHYAD: 1
Transceiver: internal
Auto-negotiation: on
MDI-X: off (auto)
Supports Wake-on: pumbg
Wake-on: g
Current message level: 0x00000007 (7)
drv probe link
Link detected: yes

Seems all Nics were 1000Mbps

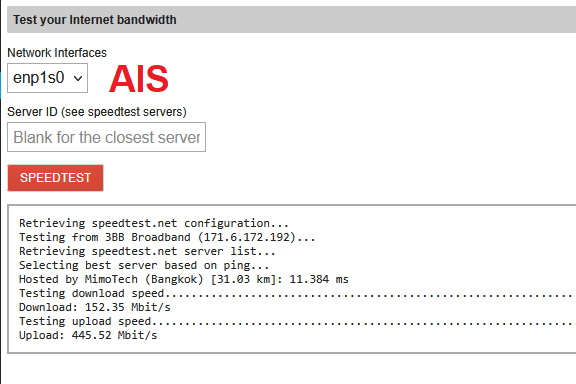

Here is NS port 980 speed test result

image576×384 10.3 KB

I also make speedtest .net from Win Client behind Green (Local)
Downloading is nearly 900 Mbps
Uploading is nearly 500 Mbps

something miscalculate!! I think :slight_smile:

For me It’s good enough to use as it is.

Cheers

1 Like
4

excellent, I hope you are well. Take care of yourself.

5

same with “new” server-manager, cockpit (:9090)?
searching for the network card model e1000e on this community you might find similar problems.

2 Likes
