Problems with Proxy implementation

NethSecurity
1

NethServer Version: NethSecurity 8-24.10.0-ns.1.5.1
Module: proxy

hi all!

i’ve set up the same exact proxy i had on my nethserver 7, imported the correct certificates as it should be, now when i test the proxy i get an nginx error 502 for some reasons i can’t understand how to fix.

how can i help you help me trying to figure out why the same exact proxy used in the nethserver 7 doesn’t work on nethsecurity 8? it’s a really simple implementation that should be almost plug and play but i don’t understand what breaks stuff. i’m not in production and i’m just in a test inviroment at the moment

another useful piece of information:
both the Nethsec and the server i need to reach are in the same DMZ
the nethsec has just one LAN setup
this setup was working fine on nethserver 7

2

Usually the 502 bad gateway error means that the server at the destination URL doesn’t respond.

Is the destination reachable from the nethsec? You could check using curl:

curl 192.168.0.10:2345
3

yes i can reach through curl the destination server which is on the same exact subnet of my nethsec.

another useful piece of information:
both the Nethsec and the server i need to reach are in the same DMZ
the nethsec has just one LAN setup
this setup was working fine on nethserver 7

4

Maybe you need to setup a DNS A record for the domain name to point to the NethSec IP?

5

ok forgot to mention that, yes i’d done that too

6

Does it mean there’s just one network interface? NethSecurity needs at least 2 network interfaces, see System requirements — NethSecurity documentation

It’s also possible to use NS8 as reverse proxy. In that case traefik is used, see Proxy — NS8 documentation

7

i understand, we don’t actually have 2 networks, on the old nethserver it was possible to use just 1 LAN port configured on one network

1 Like
8

You could use NS8 traefik as reverse proxy, it works with just 1 LAN port.
If you just need a reverse proxy, maybe some nginx container/VM could also do the job.

1 Like
9

ok this sounds cool to me, just a maybe dumb question but… how do i install traefik in my NS8?

10

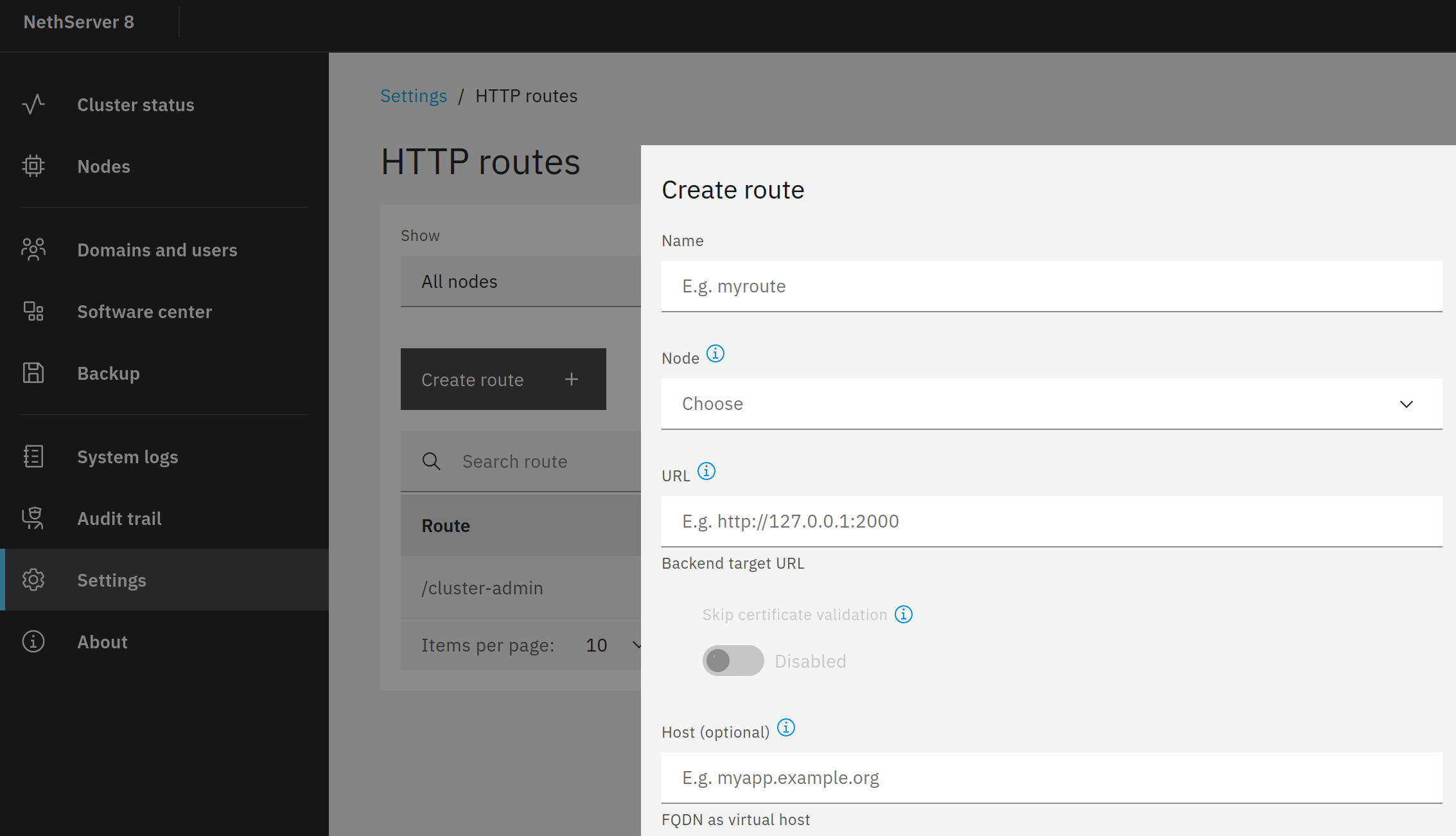

Traefik is a preinstalled core app so it’s already there in “Settings/HTTP routes”, see Proxy — NS8 documentation

grafik
grafik2267×1301 134 KB

11

ok so i need to install the NethSERVER, i can’t use it in nethsecurity got it

1 Like
