Packet loss over bond

cloud6436 · March 4, 2026, 12:06pm

Hi, new fresh install on a physical box with 4 ports, 2 GbE and 2 10GbE:

eth0: wan1
eth1: wan2

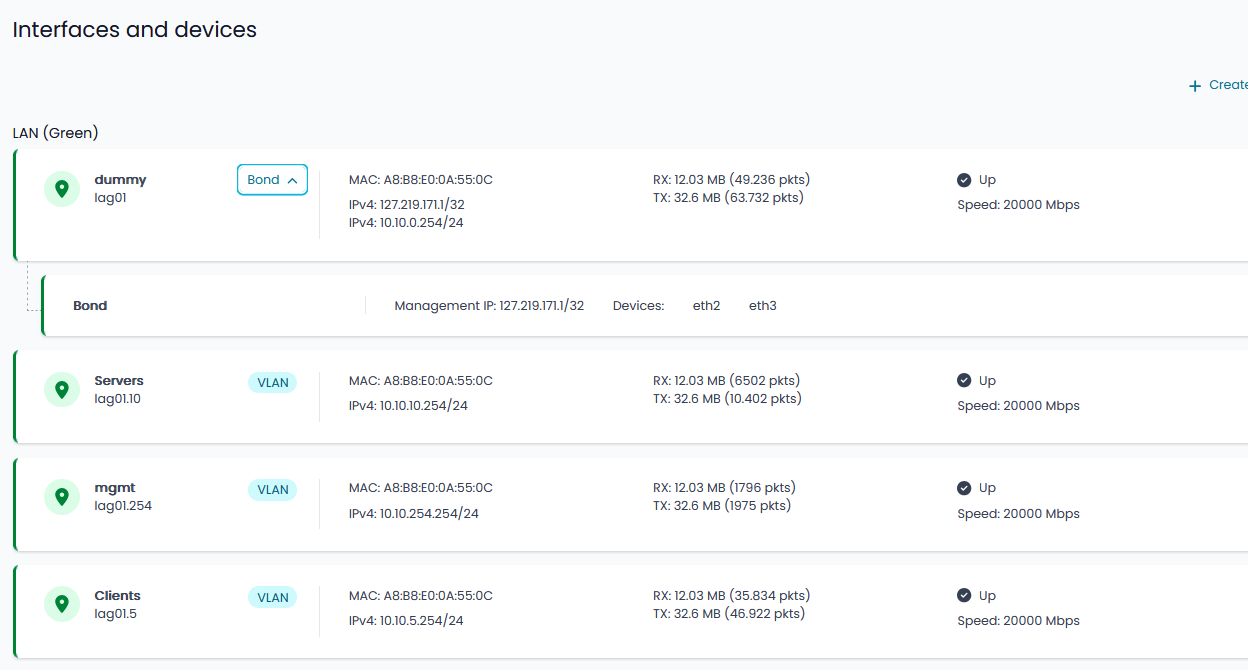

eth2+eth3: bond 802.3ad LACP.

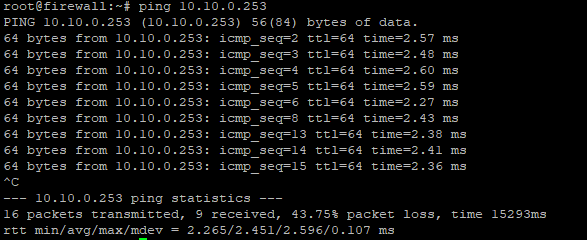

I’m experiencing packet losso between vlans.

i have also tried assigning ip at the lag and the switches in vlan 1.

10.10.0.254 → nethsecurity lag

10.10.0.253 → switch

no packet loss on the wan from outside, or from vpn to all lan interfaces on firewall side.

What can it be? is it supported to have vlan over a bond?

Thanks

mrmarkuz · March 4, 2026, 3:28pm

Is there a high CPU load? It could lead to packet drops.
You can check with Netdata or on CLI using top

cloud6436 · March 4, 2026, 4:04pm

Hi,

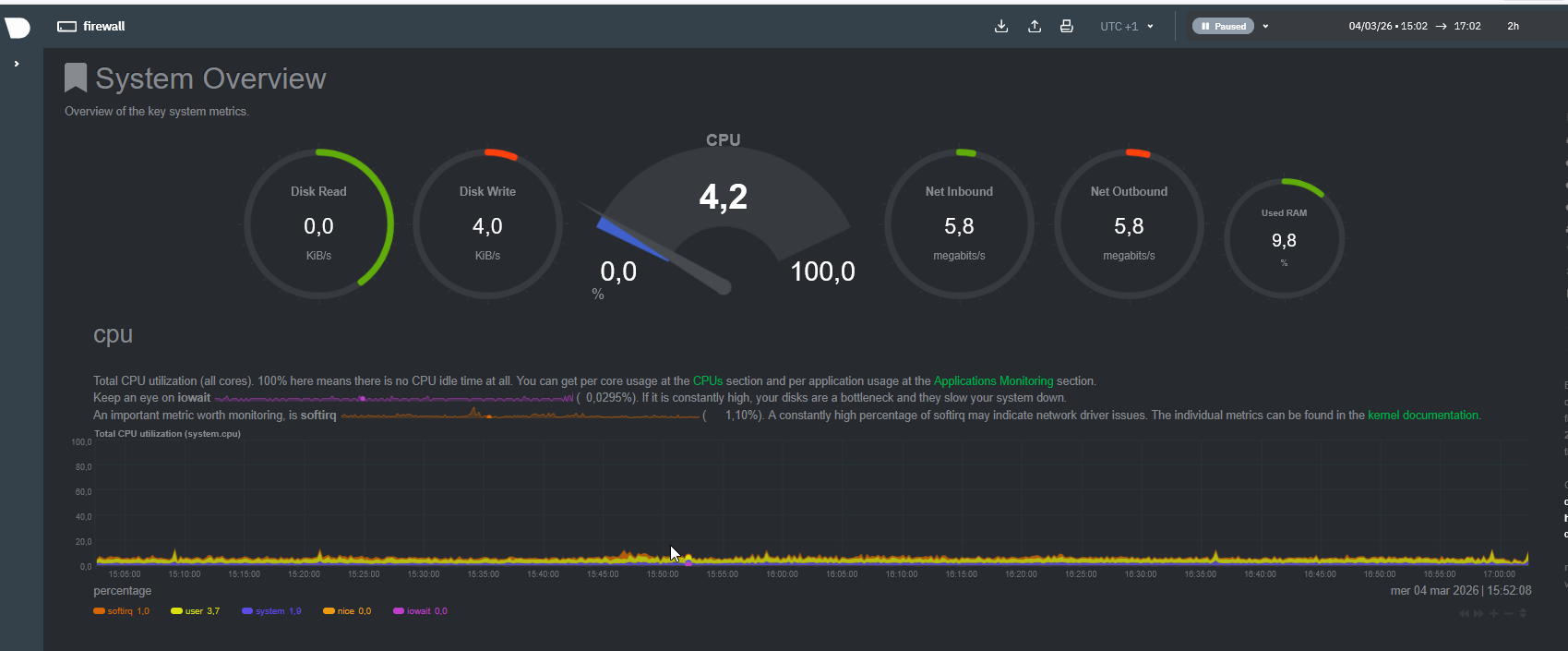

this is a period of 2 hours:

the usage is very very low, the firewall is only doing routing, no ispection or ips enable for the moment.

Thanks
