MAtrix Support in Ejabberd 24.02

oneitonitram · May 30, 2024, 6:59am

WHile Digging though the Release notes of Ns8, i came accorss anUpdate for Ejabberd to version 24.02: here

This Pormpted me to look into the release notes for this Version, While doing so, i came accross this article.
Matrix gateway setup with ejabberd / ProcessOne (process-one.net)

I understand that Alot of suers on this forum use ejabberd, and even some enterprise customers of Nethesis.

WHile i understand that we would be supporting and creating a dedicated matrix App for NS8 with the help of @mrmarkuz and @kemboielvis22 . i think supporting the implementation of matrix within ejabberd in ns8 would be a welcome move.

this does not need to be on by default, and could be enabled by user on the admin/setting page however it would provide a nice introduction to the matrix federation, and would make it easier for users who don’t need a fully fledged matrix server and components, but have the need from time to time to send messages across the matrix federation.

@davidep and @stephdl what do you think about this?

stephdl · May 30, 2024, 7:29am

As ever a POC could be done to valid the feature, the ns8-ejabberd can be used a lab, and if the feature is not so experimental maybe it could be imported or simply the ns8-ejabberd could be forked to support all features

NethForge aims to support stability.

oneitonitram · May 30, 2024, 7:49am

our current ejabberd App already supports s2s

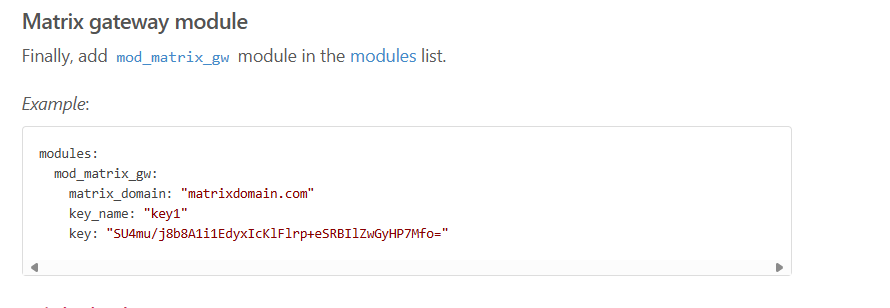

we need to have matrix gateway module enables in ejabberd

am not getting the parts about key

we then have the standard matrix process

of creating a well-known json file on https://matrixdomain.com/.well-known/matrix/server

this gives a bit more context on the key

Within the context of nethserver ejabberd, where and how are these defined?

Under bin/expand-configuration

i can see the following

my assumption at the moment is tht, these define the additional parameters in the ejabberd.yml file
within the givens ones in the context, only one parameter is defined per value.

WHat about if mutliple paramters are required?

stephdl · May 30, 2024, 8:26am

ejabberd 24.02 released Package ejabberd · GitHub

oneitonitram · May 30, 2024, 8:57am

now remaining to test and validate the matrix cinfig options, after implementation.

Do you think its possible to apply that configuration, without it being natively included in the App.
Basically though editing the ejabberd.yml

stephdl · May 30, 2024, 9:38am

edit the template not directly the file

github.com

NethServer/ns8-ejabberd/blob/main/imageroot/templates/ejabberd.yml

loglevel: 4
## rotation: Disable ejabberd's internal log rotation, as we use logrotate(8).
log_rotate_count: 0

hosts:
  - "{{hostname}}"

#
# TLS 1.2
#

define_macro:
  'CERTFILE': "/home/ejabberd/certificates/ejabberd.pem"
  'TLSOPTS':
    - "no_sslv3"
    - "no_tlsv1"
    - "no_tlsv1_1"
    - "cipher_server_preference"
  'CIPHERS': "kEECDH:+kEECDH+SHA:kEDH:+kEDH+SHA:+kEDH+CAMELLIA:kECDH:+kECDH+SHA:kRSA:
    +kRSA+SHA:+kRSA+CAMELLIA:!aNULL:!eNULL:!SSLv2:!SSLv3:!RC4:!MD5:!DES:!EXP:!SEED:!IDEA:!3DES"

This file has been truncated. show original

then restart the module

oneitonitram · May 30, 2024, 9:54am

might be abit unrelated question.

SO, ejabberd has an ejabberd.yml file but for the sake of ns8 and being able to modify the file at runtime, we have a defined template with the same name, whcih when modifies updates the original config file.

is that whats happening here? in relation to this

stephdl · May 30, 2024, 12:22pm

before to start the ejabberd service a script trigger to rewrite the template, I suppose you pointed it

oneitonitram · May 30, 2024, 12:31pm

given me idea for another solution with multiple yml config files

stephdl · May 30, 2024, 1:33pm

you can do it also with bash, but I like jinja template

github.com

stephdl/ns8-lam/blob/main/imageroot/bin/write-ldap-conf

#!/bin/bash

#
# Copyright (C) 2024 Nethesis S.r.l.
# SPDX-License-Identifier: GPL-3.0-or-later
#

mkdir -vp lam-config
if [[ -f lam-config/lam.conf ]];then
    # we do not want to overwrite the configuration file of LAM by the template
    exit 0
fi

if [[ "$LDAP_DOMAIN" != "" ]]; then
    envsubst > lam-config/config.cfg <../templates/config.cfg.tmpl
    if [[ "$LDAP_SCHEMA" == "rfc2307" ]]; then
        LDAP_ADMIN_USERS=$(echo "$LDAP_ADMIN_USERS" | tr ',' '\n' | while IFS= read -r line; do echo -n "uid=${line},ou=People,${LDAP_BASE};"; done)
        # chop the semicolon at the end
        LDAP_ADMIN_USERS=${LDAP_ADMIN_USERS%;}
        envsubst > lam-config/lam.conf <../templates/rfc2307.tmpl

This file has been truncated. show original

oneitonitram · November 28, 2025, 6:57am

Bump this for @mrmarkuz from this Add Matrix to NethForge · Issue #7723 · NethServer/dev

WOuld it be possible, and now be the right time, to enable the configurations within ejabberd that allows it to speak matrix, since they are already supported.

@davidep is this a case, we should also consider, even as we are working on a dedicated matrix serve rmodule, with most probably additional features and imporvements?!

davidep · November 28, 2025, 7:43am

Let’s ask @Amygos and @giacomo

giacomo · November 28, 2025, 7:54am

The ejabberd Matrix gateway is used to federate the XMPP server with a Matrix server.
We already have federation for XMPP but I’ve never seen a real server using it: this is a very little niche feature and the Matrix integration is a littler one.

Adding a feature means maintaining it in all future release: it must be a weighted decision.
More code, more bugs, more support request, more technical debt, less time to work on new things.

I’d say: let’s focus on having a fully working Matrix server with basic feature, then we can improve it by adding one feature at a time.
Eventually we can design the module to be extensible so anyone can put custom config on it.

oneitonitram · November 28, 2025, 9:53pm

i thought it was something different.

in this case

then we proceed with this path
