LemonLDAP-NG in Podman

stephdl · March 21, 2025, 2:41pm

ghcr.io/stephdl/lemonldapng:1.0.0-dev.5

mrmarkuz · March 21, 2025, 10:14pm

Thanks for the great app! I need to take a closer look at LLNG as a lot of apps seem to support SSO. There’s already a documentation in the wiki: userguide:llng [NethServer & NethSecurity]

Installation went fine, login with AD admin user worked.
But changing the FQDN didn’t work in my tests.

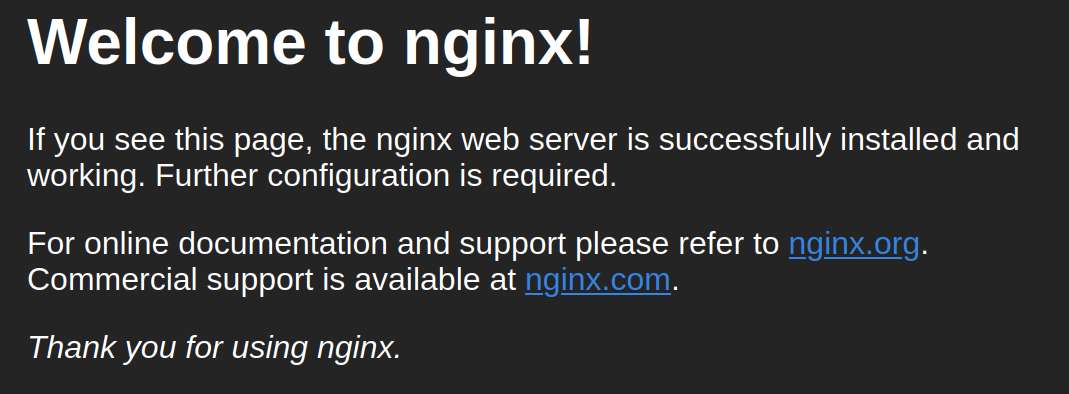

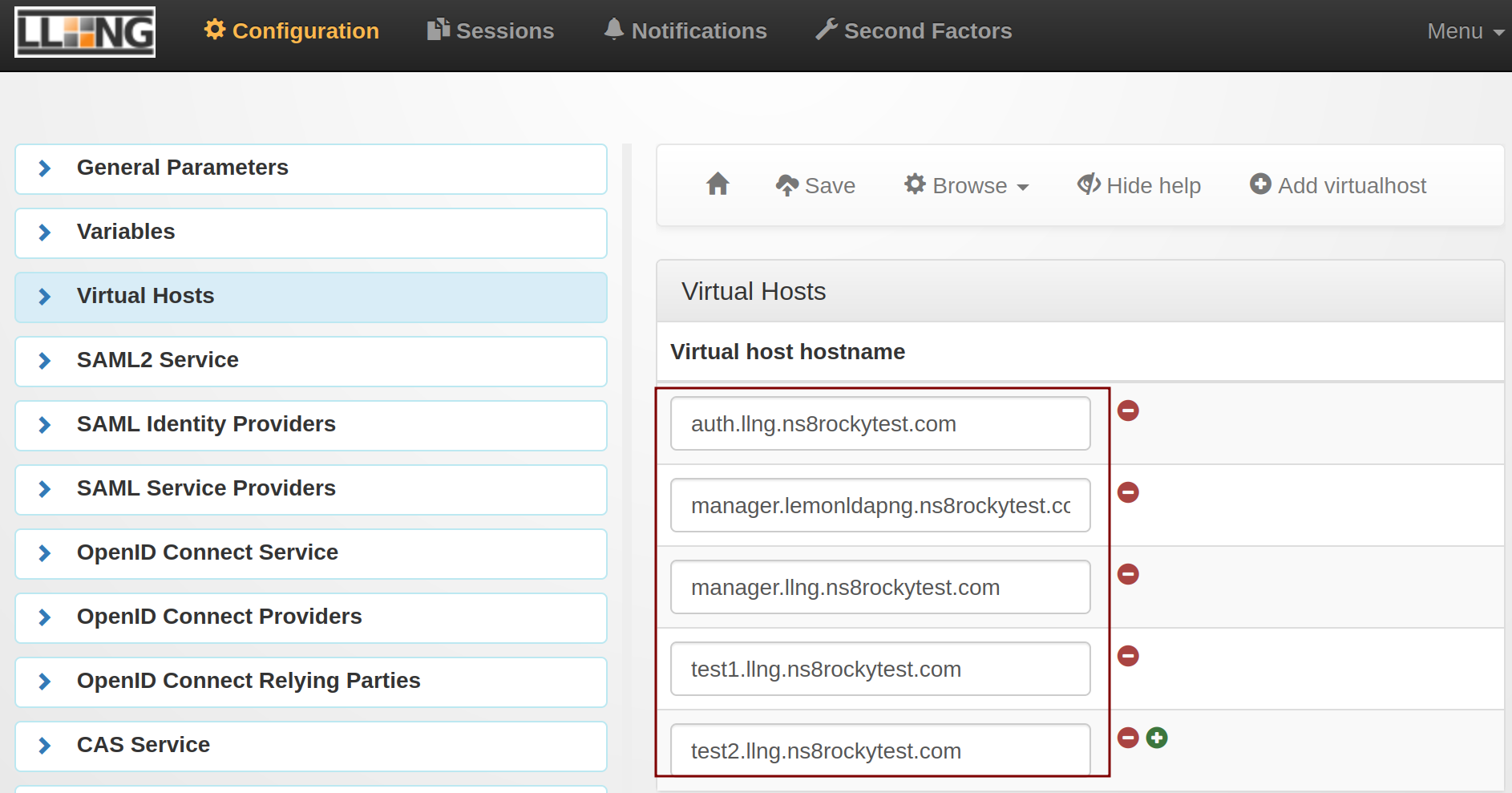

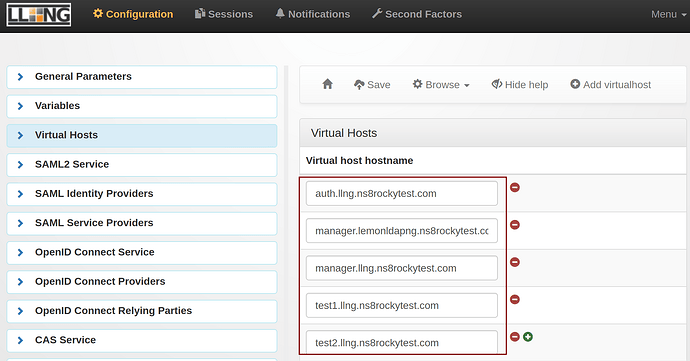

I changed the FQDN in the NS8 app settings after the first configuration from llng.ns8rockytest.com to lemonldapng.ns8rockytest.com which leads to getting the nginx default page on all virtual hosts.

After changing the FQDN back to llng.ns8rockytest.com I was able to login again.

Shane_Treweek · March 24, 2025, 1:24am

I can change the favicon and logo and I’m fairly certain background the only thing is apps which if I remember needs the images to be in portal/htdocs/static/common/apps/ so I think everything works but we just need to add the volume for apps

so maybe adding --volume ./llng/apps:/usr/share/lemonldap-ng/portal/htdocs/static/common/apps:Z \ to imageroot/systemd/user/lemonldapng-app.service

also I tested after adding some data and did a restore it worked flawlessly

stephdl · March 24, 2025, 6:19am

Nice shot. It try to fix it today

stephdl · March 24, 2025, 4:06pm

@mrmarkuz the container does not allow to modify on the fly the domain, I look inside but each virtualhost must be modified either with the UI of lemonldapng, or maybe with a script, for now once set, the fqdn fiels is disabled

apps is added @Shane_Treweek

stephdl · March 24, 2025, 4:31pm

ghcr.io/stephdl/lemonldapng:1.0.0-dev.6

Shane_Treweek · March 24, 2025, 9:47pm

Virtual hosts can be added (at least they should be able to be) via modifying lm-conf.json file and permissions set via lemonldap-ng-cli
(e.g., /usr/share/lemonldap-ng/bin/lemonldap-ng-cli -yes 1 \ addKey \ 'locationRules/test.example.com' 'default' 'accept' \ 'locationRules/test.example.com' '(?#Logout)^/logout\.php' 'logout_sso' \ 'exportedHeaders/test.example.com' 'Auth-User' '$uid' \ 'exportedHeaders/test.example.com' 'Auth-Mail' '$mail')
So we could make a script for that also can use cli to setup saml apps so they can be scripted too

Also do we need to add the custom folders to file retention in script?

Shane_Treweek · March 25, 2025, 3:04am

I’ve been able to set all icons, logo, favicon and background (I needed to use custom css file for background) I’ll do a how to later with the steps.

Next I need to test saml

Update

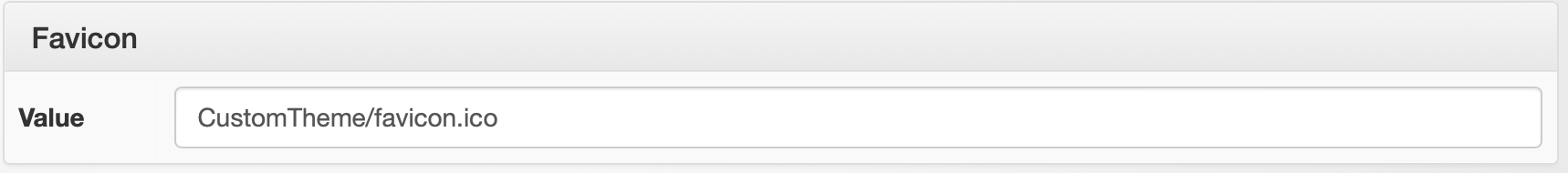

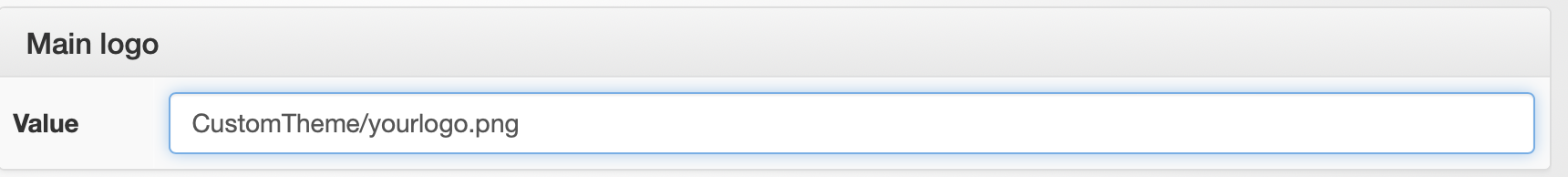

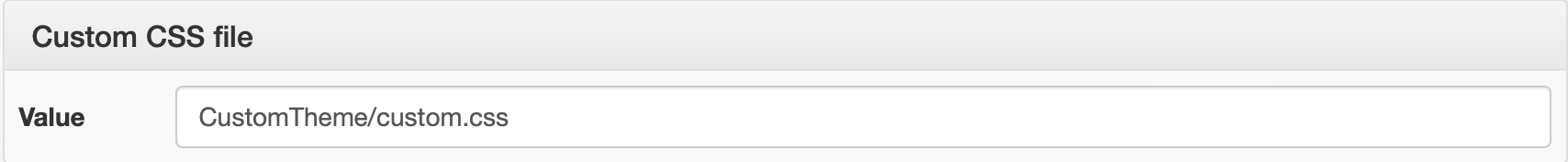

these are how you set the logo and favicon and custom css
first add your files to ./llng/theme (i.e., yourlogo.png, favicon.ico and custom.css.)

also go into Default skin and set to custom

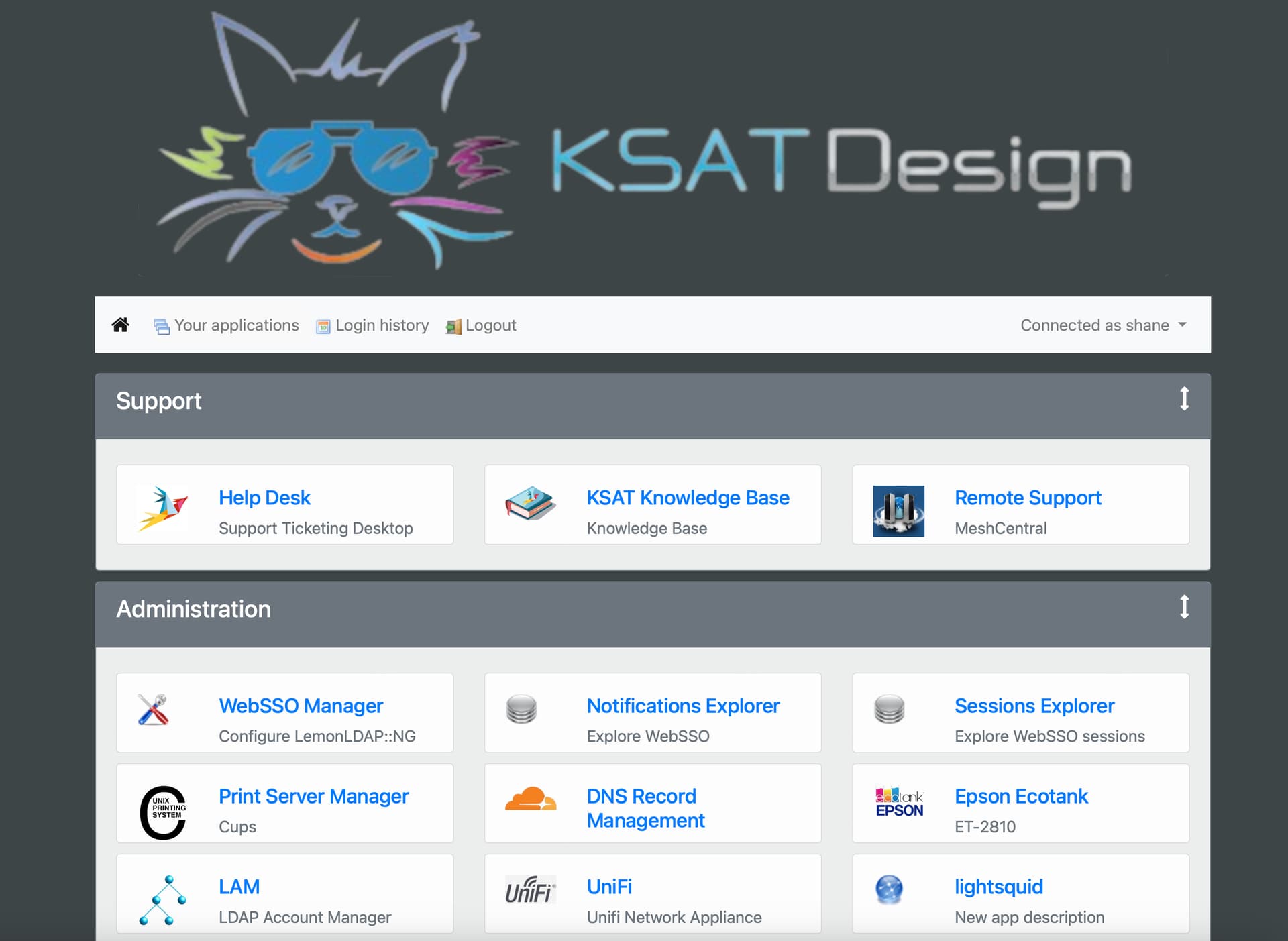

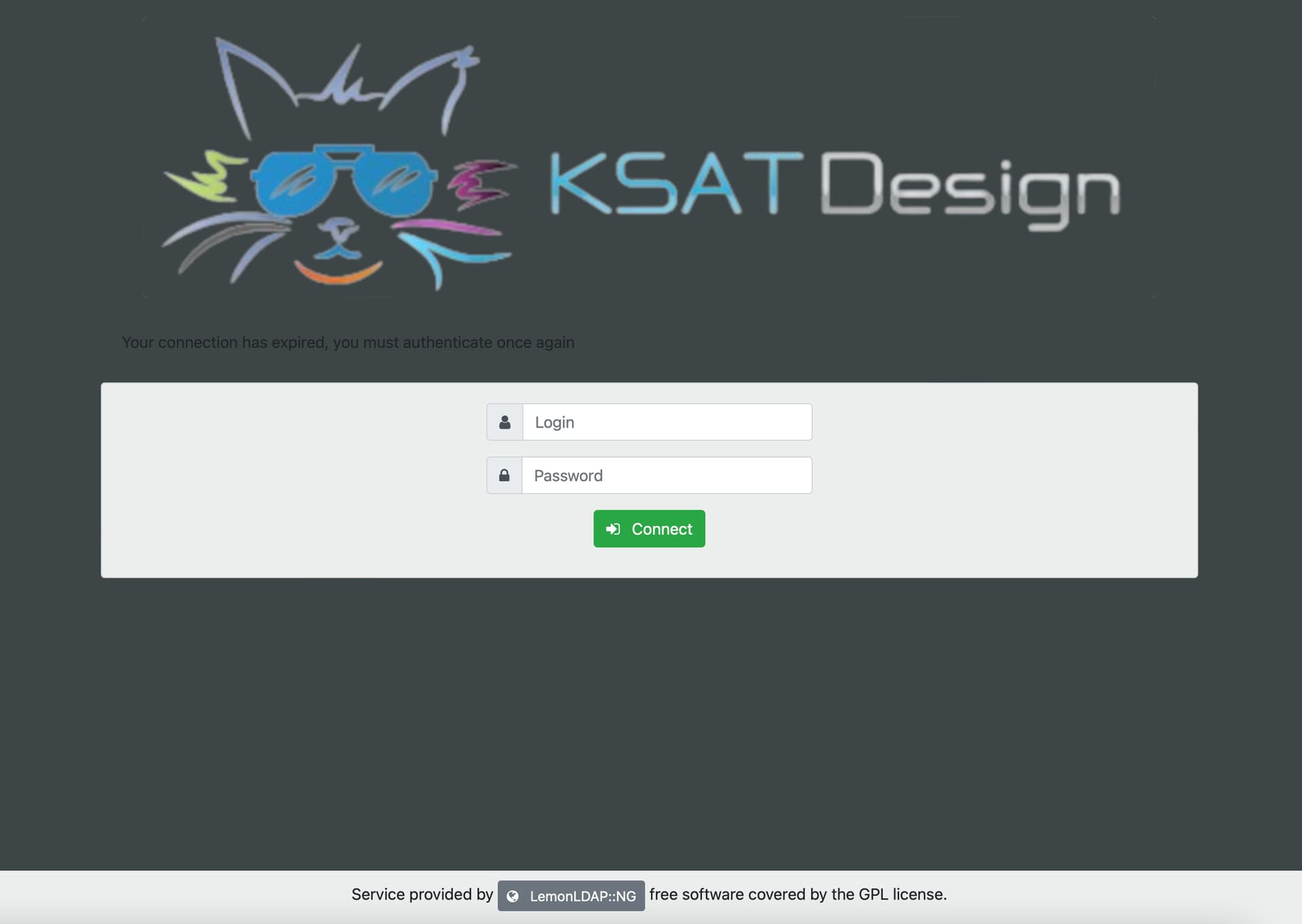

the custom.css file I use to get the following look

is

custom.css


html, body {
    height: 100%;
    background: url("yourlogo.png") no-repeat center fixed !important;
    background-size: cover !important;
}


#wrap {
    min-height: 100%;
    height: auto;
    margin: 0 auto -80px;
    padding:20px 0 80px
}

#footer {
    height: 80px;
    background-color: #fff;
    background-color: rgba(255, 255, 255, 0.9);
    text-align: center;
    padding-top: 10px;
    overflow:hidden
}

#header img {
    background-color: #fff;
    background-color: rgba(255, 255, 255, 0.8);
    margin-bottom:20px
}

.card, .navbar-light {
    background-color: #fff;
    background-color: rgba(255, 255, 255, 0.9);
    background-image:none
}

.login, .password {
    text-align: center;
    padding:20px
}


div.form {
    margin: 0 auto;
    max-width:330px
}

div.actions {
    margin:10px 0 0 0
}

div.actions a {
    margin-top:10px
}

div.actions button {
    margin-top:10px
}

.buttons {
    text-align: center;
    margin: 10px 0 0 0;
    cursor:pointer
}

.btn {
    white-space:normal
}

.btn span.fa {
    padding-right:8px
}

li.ui-state-active {
    background-color: #fafafa;
    background-color:rgba(250, 250, 250, 0.9)
}

#appslist, #password, #loginHistory, #logout, #oidcConsents {
    margin-top:20px
}

div.category {
    margin: 10px 0;
    cursor:grab
}

div.application {
    margin: 5px 0;
    overflow:hidden
}

div.application a, div.application a:hover {
    text-decoration:none
}

p.notifCheck label {
    margin-left: 5px;
    margin-top: 3px;
    display:inline-block
}

.notif div.form {
    margin 0 auto;
    max-width:1024px
}

.notif .h2, h2 {
    font-size: 1.6rem;
    font-weght: bold;
    text-align:center
}

.notif .h3, h3 {
    margin-top: 30px;
    margin-bottom: 30px;
    font-size:1.2rem
}

.notif .card-title {
    font-size:1.7rem
}

img.langicon {
    cursor:pointer
}

span#languages {
    padding: 5px;
    display: block;
    overflow: auto;
    max-height:80px
}

button.idploop {
    max-width:300px
}

button.idploop img {
    max-height:30px
}

div.oidc_consent_message > ul {
    text-align: left;
    list-style:circle
}

@media (min-width: 768px) {
    div.application {
        height:80px
    }

    div.application h4.appname {
        margin:0
    }

    #wrap {
        margin:0 auto -60px
    }

    #footer {
        height:60px
    }
}

.hiddenFrame {
    border: 0;
    display: hidden;
    margin:0
}

.noborder {
    border:0
}

.max {
    width:100%
}

.link {
    cursor:pointer
}

.nodecor:hover, .nodecor:active, .nodecor:focus {
    text-decoration:none
}

.fa.icon-blue {
    color:blue
}

.progress-bar-animated {
    width:100%
}

input.key {
    font-family: 'password';
    width:100px
}

@font-face {
    font-family: 'password';
    src:url(/static/common/fonts/password.ttf)
}

.info.table caption {
    color: black;
    text-align: center;
    caption-side:bottom
}

div.input-group > p.form-control {
    height:auto
}

div.input-group > p.form-control > label {
    display: revert;
    user-select: none;
    cursor:pointer
}

#btn-back-to-top {
    position: fixed;
    bottom: 70px;
    right: 20px;
    display:none
}

#remembertimercontainer {
    display:none
}

#globalrememberauthchoicecontainer {
    display:none
}

.renewcaptchaclick {
    cursor: pointer
}

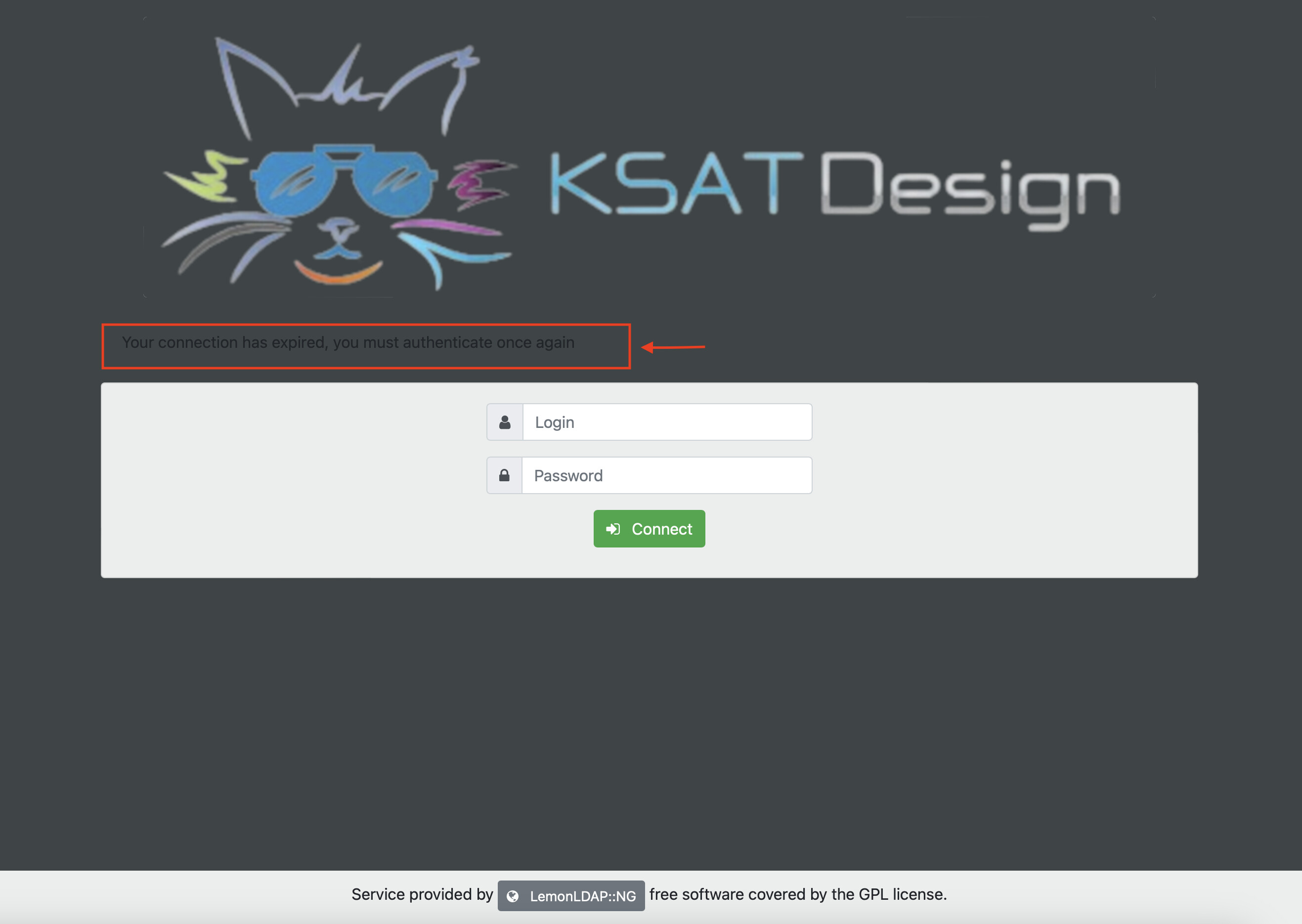

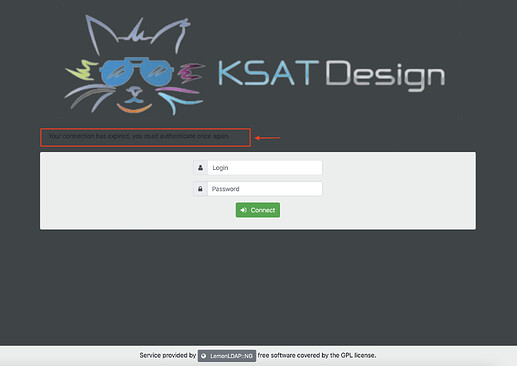

note: I’m still working out what I don’t need in the css so I’ll update that after some testing also I need to fix

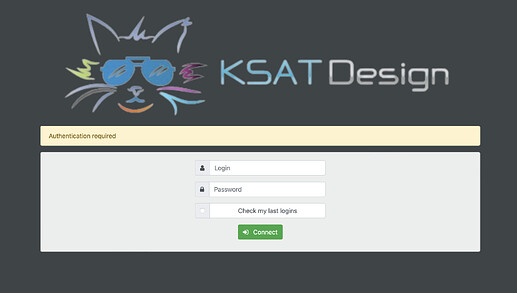

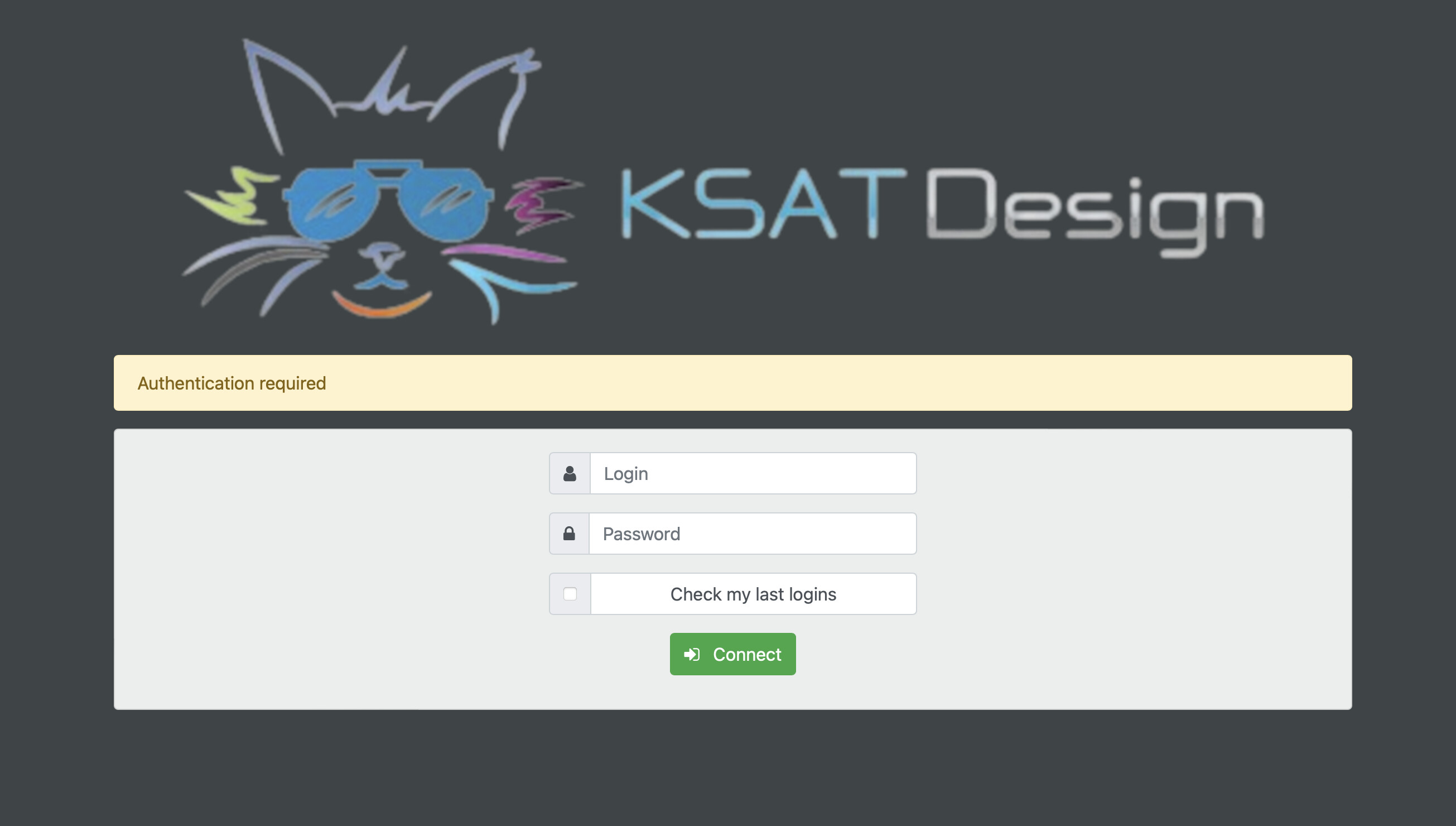

which should look like this

so I need to add .alert attributes in the custom.css

stephdl · March 25, 2025, 6:34am

Sorry i do not understand ?

stephdl · March 25, 2025, 6:37am

True but only for the auth, manager, test1, test2, and reload.

Obviously for any virtualhost you could add later I have no way to do it.

Is it an issue
, i tought yes but i could be wrong

stephdl · March 25, 2025, 6:37am

Thanks a lot

stephdl · March 25, 2025, 6:39am

Nice idea…once we know what we need to modify we could add/code it

stephdl · March 25, 2025, 6:43am

github.com/stephdl/ns8-lemonldapng

imageroot/actions/configure-module/20configure_traefik

b42a2e5ed



              agent_id=agent.resolve_agent_id('traefik@node'),
              action='set-route',
              data={
                  'instance': 'manager-'+os.environ['MODULE_ID'],
                  'url':  'http://127.0.0.1:' + os.environ["TCP_PORT"],
                  'host': 'manager.'+host,
                  'http2https': h2hs,
                  'lets_encrypt': le
              },
          )
          response = agent.tasks.run(
              agent_id=agent.resolve_agent_id('traefik@node'),
              action='set-route',
              data={
                  'instance': 'reload-'+os.environ['MODULE_ID'],
                  'url':  'http://127.0.0.1:' + os.environ["TCP_PORT"],
                  'host': 'reload.'+host,
                  'http2https': h2hs,
                  'lets_encrypt': le
              },
          )

I create the route inside traefik for reload, test1, test2

I am not sure for the needs, do we need to create a route for any virtualhost we add ?

Shane_Treweek · March 25, 2025, 1:09pm

Sorry I ment preservation not retention

–env PRESERVEFILES=“/etc/lemonldap-ng /var/lib/lemonldap-ng/conf /var/lib/lemonldap-ng/sessions /var/lib/lemonldap-ng/psessions /etc/nginx/sites-enabled” \

stephdl · March 25, 2025, 2:58pm

I tested, the route inside traefik is a mandatory…still trying to understand the tools

I get a 404 without the route test1.sub.domain.org, test2sub.domain.org, reload.sub.domain.org,

stephdl · March 25, 2025, 3:01pm

not sure how it works

following https://github.com/LemonLDAPNG/lemonldap-ng-docker/blob/0019c61478b876e6ae18f737be3cc61df0fa7489/docker-compose.yaml#L20

I added all mounted volumes except for the user customisation

Do you see a specific volumes to add ?, which one ?

Shane_Treweek · March 25, 2025, 11:29pm

I thought we might need to add the /usr/share/lemonldap-ng/portal/htdocs/static/CustomTheme etc to it so it keeps the data when the app restarts but wasn’t sure if that was required

Shane_Treweek · March 25, 2025, 11:47pm

the lemonldap-ng-cli can do a lot but I just remembered during my test (when I was using scratchpad) I exposed the cli by exposing /usr/share/lemonldap-ng/bin
(i.e., --volume ./llng/bin:/usr/share/lemonldap-ng/bin:Z \) but I couldn’t get it to work with permissions as it needed to be executed in the pod like
runagent -m lemonldapng1
cd llng/bin
lemonldap-ng-cli -yes 1 \ addKey \ 'locationRules/test.example.com' 'default' 'accept' \ 'locationRules/test.example.com' '(?#Logout)^/logout\.php' 'logout_sso' \ 'exportedHeaders/test.example.com' 'Auth-User' '$uid' \ 'exportedHeaders/test.example.com' 'Auth-Mail' '$mail'
it wouldn’t have the permissions as it’s rootless not sure if that is different with your app as I haven’t tested but I’m sure we can figure something out but it’s not something we need right now but something to aim for in maybe RC 2.0

Shane_Treweek · March 25, 2025, 11:54pm

no as LemonLDAP-NG is only checking to see if your authorised then letting the page load it’s not acting as a tunnel if that makes sense the only routes you need are for auth, manager, and reload

reload won’t show anything as I’m fairly certain it’s a url for the FASTCGI handler but it’s still needed as for test1, test2 they don’t technically need to do anything as their just sample place holder pages to show multiple categories and when implementing LemonLDAP-NG in the past we automatically remove them

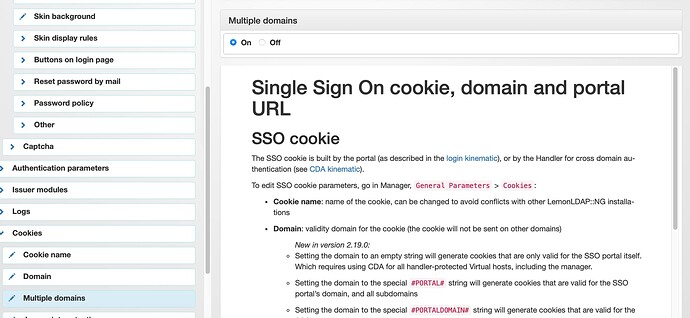

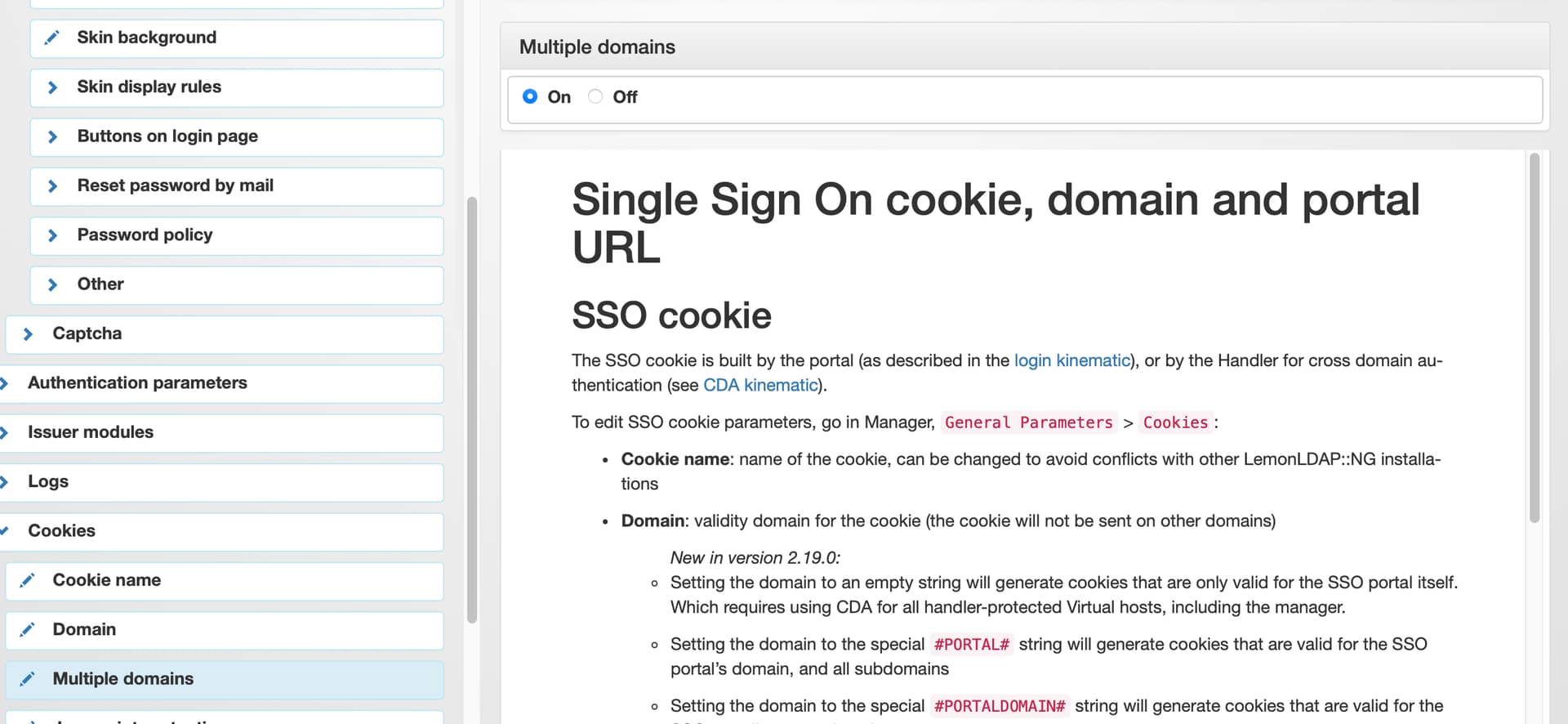

I also forgot to mention if people want to use websites not in the domain they need to set cross domain options

also sorry if I over explain things sometimes I’m just aware my explanations can make sense to me but after reading my answer a few times a then realise there a jumbled mess

stephdl · March 26, 2025, 3:06pm

translations added fr, ar, es, de, it, pt, pt_BR

add-module ghcr.io/stephdl/lemonldapng:1.0.0-dev.7
