Help getting started with Nethproxy and Nethvoice

Support
1

NethServer Version: NS8
Module: NethProxy and Nethvoice

So I’m above average in figuring out software. But I’m completely stumped and need community help here. I am interested in the Telephony aspects of NS. I had previously tried installing Nethvoice and always got stuck at 67%. Yesterday I was hell bent and left my VM running for hours until it went past 67% and successfully installed. Yaaaay! Now what? I don’t see a means to pull up the UI for the Proxy or Voice. Completely stumped. In contrast, I had picked up other really complicated open source VoIP platforms (Kazoo, ivozprovider for example) and successfully felt my way through them to the point of actually deploying and supporting small live production. But with NethProxy/Voice, I’m completely stumped. I may be getting old but I don’t think I’m that far gone lol. Please how can I test this out? I have it deployed on a Proxmox homelab using the qcow2 of the website.

Thanks in advance

2

Hi,

and welcome to Nethserver Community.

Neth 8 needs fast disks, at least SSD are recommended, see also System requirements — NS8 documentation

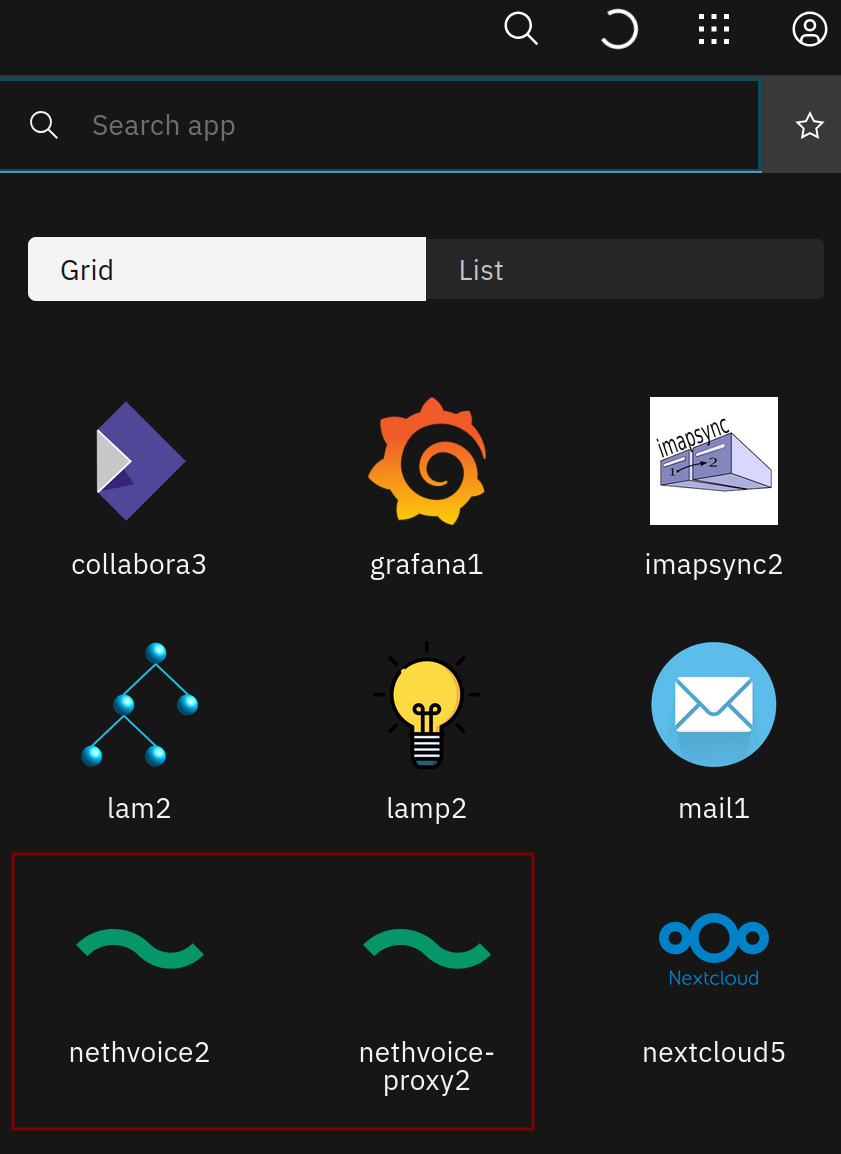

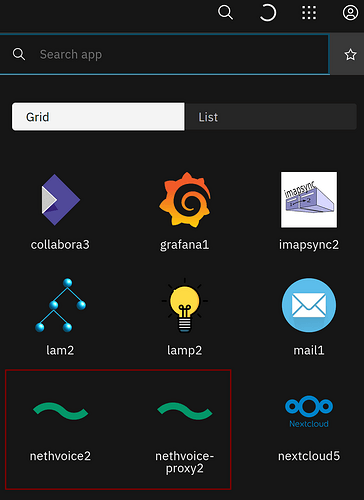

You can find the apps in the app drawer on the top right, first go to NethVoice Proxy to configure it:

grafik
grafik841×1154 84.4 KB

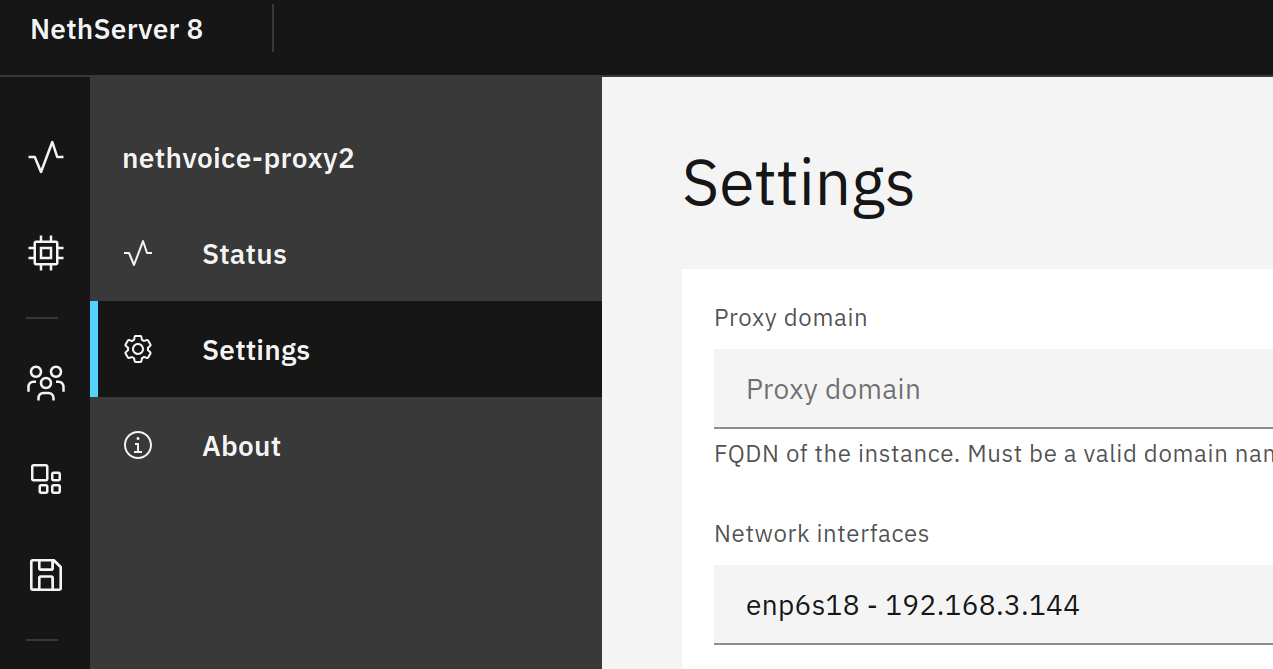

Then go to settings and configure NethVoice Proxy.

grafik
grafik1273×669 49 KB

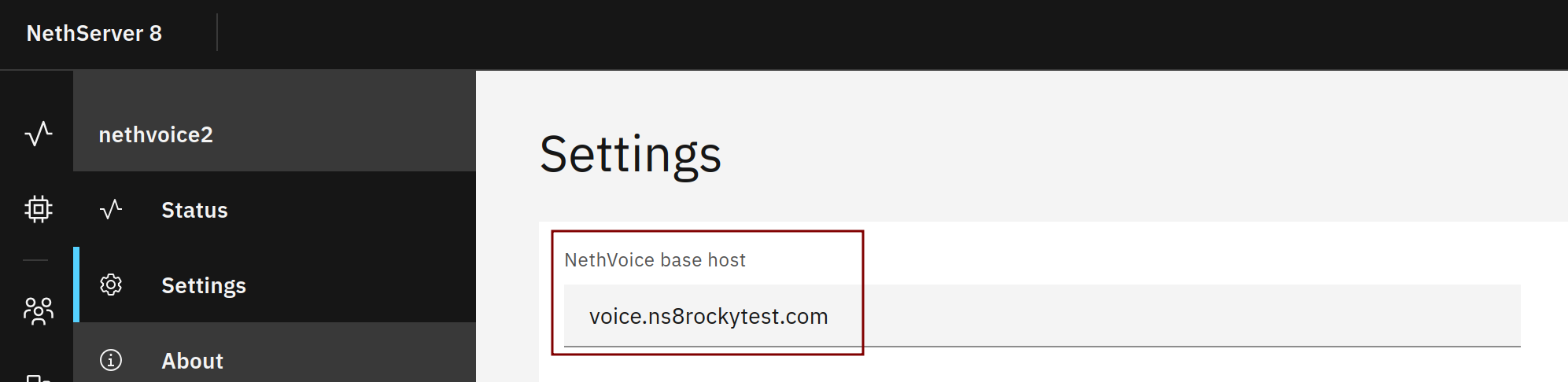

Then go to NethVoice and configure it.

grafik
grafik1993×486 37 KB

Browse to the NethVoice base host and login with the credentials you set.

Proxy docs: NethVoice Proxy — NS8 documentation

Nethvoice docs: NethVoice — NS8 documentation

3

Thanks @mrmarkuz for the welcome and glad to be here

Do I have to have actual A Record entries pointing to my public IP and punch my firewall? I cannot test it solely within my LAN?

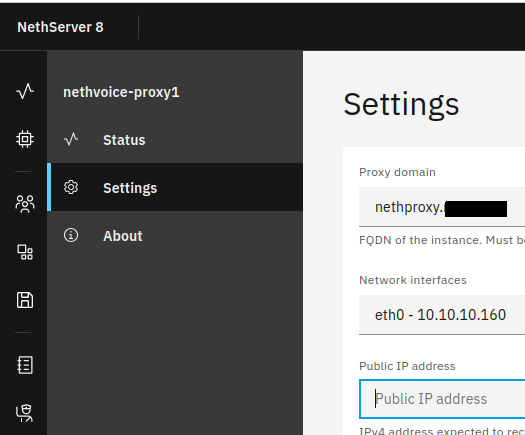

Screenshot from 2025-04-16 04-42-38
Screenshot from 2025-04-16 04-42-38525×435 23.9 KB

4

It should also be possible to test it in LAN. Just put the local IP of eth0 in the “Public IP address” field.
You need to setup a DNS entry on your firewall so that the nethvoice base host points to the NS8 IP.

5

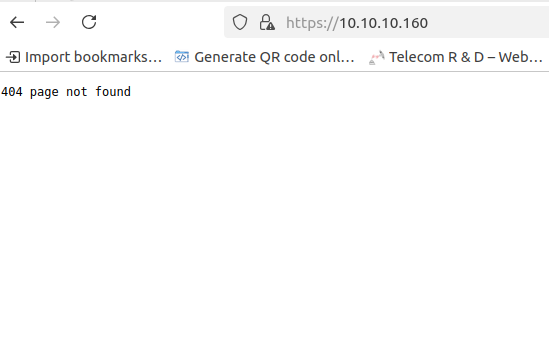

DNS entry for nethvoice base set on router and I get a 404

image549×340 11.7 KB

6

You need to use the name, not the IP.
In NS8 a reverse proxy (traefik) is used and therefore you need to use names to get to the right app.

7

I will try again over this weekend and report back. Thanks for the support

1 Like
8

Final bit the bullet to host this on a VPS. I’d like some clarification as I’m coming from the US VoIP provider space.

Nethproxy sounds like it is a Session Border Controller. I’ve got a few questions (possibly feature requests?) I’d need clarification on. First would be: How do I add non-Certified trunk Providers? I’ve got Telnyx, Twilio and Signalwire as trunks and would like to add these and the DIDs I have on these providers.

Next question is around HOMER and/or VoIPmonitor for troubleshooting. Is there anyway to incorporate any of these (HOMER preferably) for SIP signaling troubleshooting.

Are there any plans to incorporate support for texting/SMS? For FreePBX, I normally would install the open source SMS connector. But it looks like Access to FreePBX’s module Admin (Admin>Module Admin) is restricted on the instance of Nethvoice.

US STIR/SHAKEN: Are there any plans to support this?

Thanks in advance

9

This can be done via FreePBX AFAIK, see also Some questions about NethVoice app - #9 by LayLow

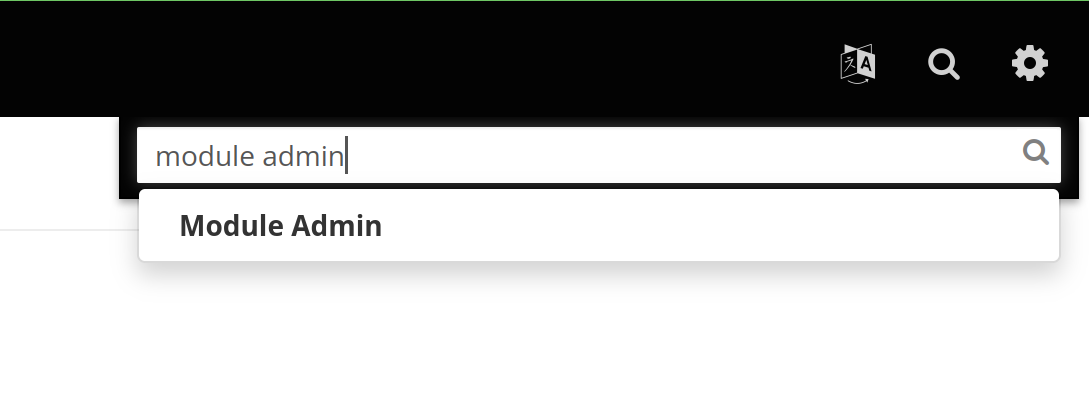

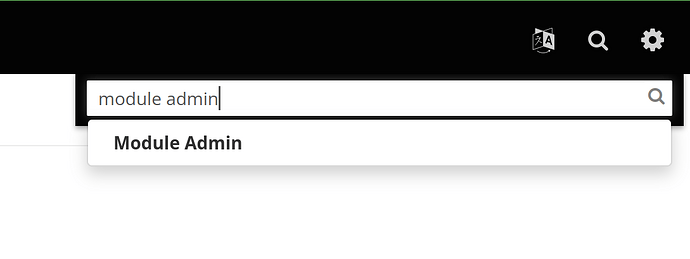

I found that you can reach the module admin using the search function but I guess you can break things when installing unsupported modules.

image1089×409 17.4 KB

cc @Amygos @Stll0

10

For custom FreePBX modules, you cannot use module admin because freepbx is containerized and new files would be deleted on container restart. But it’s possible to add custom modules by placing module .tar.gz in a folder ns8-nethvoice/freepbx/README.md at main · nethesis/ns8-nethvoice · GitHub

1 Like
