Apps running on second node should be accessible from Leader

[jfranco (Jean Franco)]

Hi folks,

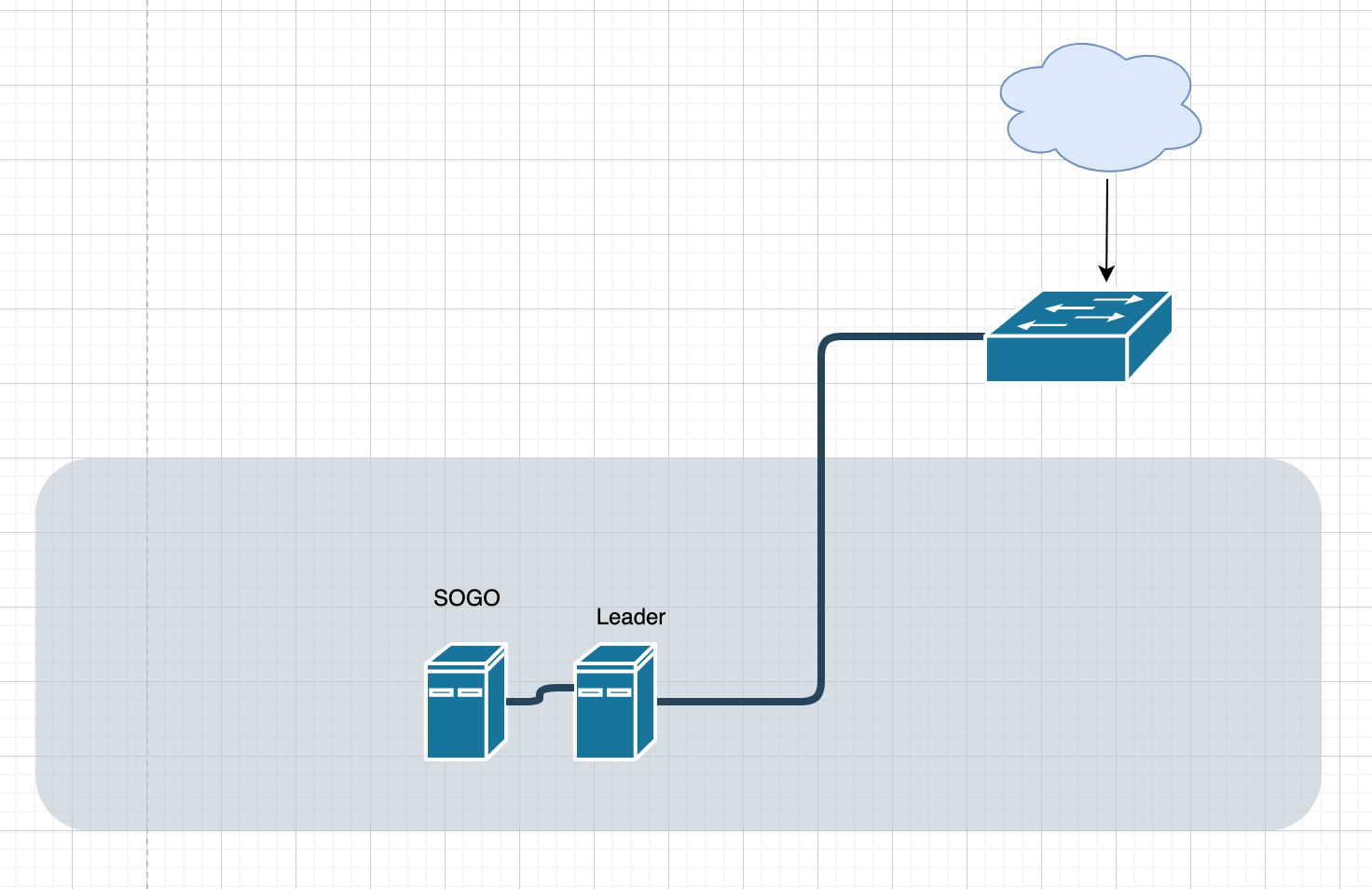

As far as I understood, if I have multiple nodes, and I want to run a application on a second node, it should be accessible from the outside passing through nginx on the leader and using the VPN to access the resources of the application on node2. Am I wrong?
I’m only getting a 404 page not found.

[frx44 (frank reinecke)]

That’s not working.
I’ve reverse-addressed all the other nodes directly.

It’s good that opensense does this with caddy. This way, the nodes can get their own certificate.

[transocean (Uwe)]

Hi @jfranco

Are you really using Nginx in front of the NS8 cluster, even though NS8 already has Traefik on board? You can do that, but it increases the configuration effort unnecessarily. I have two NS8s running in a cluster here. The first one only runs Samba AD, and the second one runs applications such as Nextcloud, Onlyoffice, and so on. If I want to make applications accessible from outside, I always forward the required port to the IP of the second NS 8.

Regards…

Uwe

[jfranco (Jean Franco)]

@transocean

even though NS8 already has Traefik on board?

Hi @transocean ,
That’s what I meant!
I’m not using anything extra, but in Settings I see that the routing was created pointing to the application on the second node.

The setup that you mentioned is what I’m trying to accomplish, but as @frx44 pointed out, it didn’t work.

Thanks,

[transocean (Uwe)]

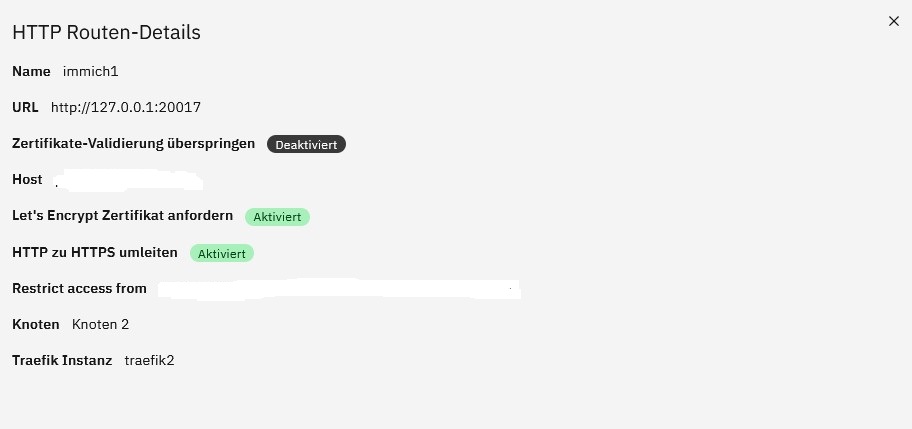

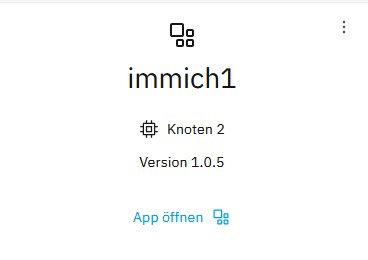

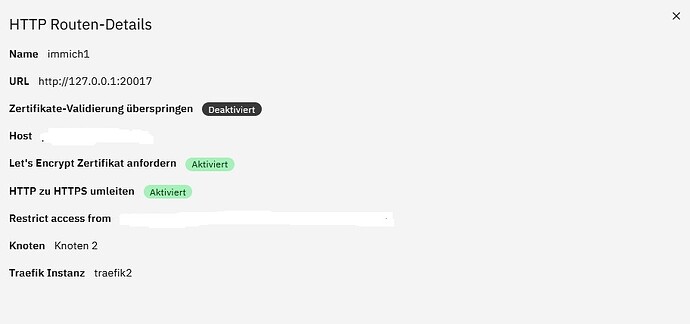

Here is my configuration using Immich from @mrmarkuz as an example.
It works without problems.

[jfranco (Jean Franco)]

Right,
Exactly as mine, I even tried installing other applications besides SOGo, but none worked.
And the letsencrypt certificate works for all of them.

My setup is using debian on both nodes with all the latest updates.

Thanks,

[mrmarkuz (Markus Neuberger)]

You could setup a traefik http route on the leader, pointing to the worker node:

How to Use a NethServer Leader Node as a Gateway to Access Applications on Private Worker Nodes?

Hi, welcome to NethServer Community! You could create HTTP routes on the Leader Node to the worker nodes Wireguard VPN IPs. I tested it with the webserver app on a 3 node cluster, 1 worker node at home. On the leader node I set following http route: [grafik] The Host has to match the app hostname on the worker. You’ll find the wireguard VPN IPs on the Nodes details pages. On CLI you could use: ip a s dev wg0

[jfranco (Jean Franco)]

@mrmarkuz

You could setup a traefik http route on the leader, pointing to the worker node:

Hi @mrmarkuz ,
I had already checked that post.
When I go to settings I see that it’s already set automatic, so I thought I didn’t had to do it.
When I tried as per your example, since I have to use the exact name os the app, it tells me it’s already being used.

It doesn’t allow me to delete.

Thanks,

[mrmarkuz (Markus Neuberger)]

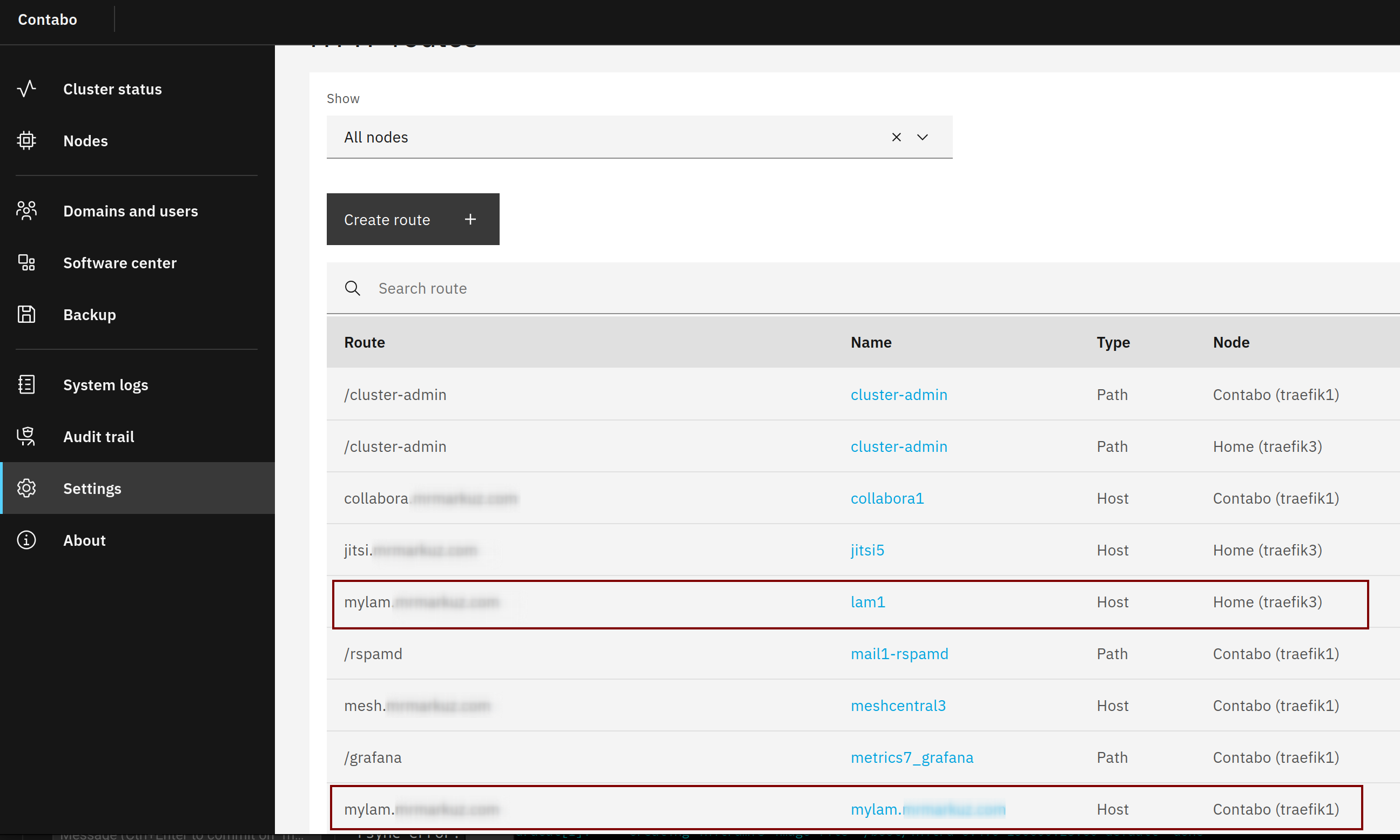

Here is an example where node 1 is the leader and node 3 is the worker:

Usually you don’t need to delete anything.

The route is added to the leader node 1. On the worker node 3 a route already exists pointing to localhost.

@jfranco

since I have to use the exact name os the app

You can use any name, the “Route” or FQDN needs to be set correctly.

[oneitonitram (MrGenius)]

do we have a wiki entry of how to use leader node as a gateway to access applications on private worker nodes

[LayLow]

Good call, the wiki has the capabilities to draw anything you like based on Diagrams.net

[oneitonitram (MrGenius)]

the wiki really has been receiving alot of love lately from you
